When you’re planning to install electrical wiring underground, it’s crucial to adhere to the appropriate code for buried electrical wires. This ensures the safety, durability, and functionality of your system. Improperly buried wires can lead to a host of issues, including electrical faults, safety hazards, and non-compliance with regulations. In this guide, we’ll break down the important electrical codes for burying wires, focusing on wire types, burial depths, and the importance of following local regulations.

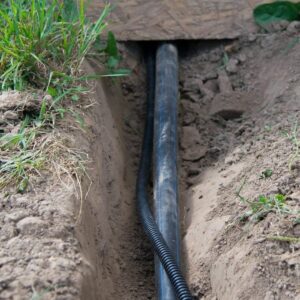

code for buried electrical wires
Why Following Electrical Codes for Buried Wires is Crucial
Buried electrical wires are often subjected to environmental elements such as moisture, soil composition, and pressure from objects above ground. Therefore, understanding and following the correct burial codes is essential for:
Safety: Proper wire burial depth protects against electrical hazards caused by accidental digging or damage from vehicles.
Code Compliance: Adhering to local electrical codes helps prevent fines, legal issues, and ensures that your installation is up to industry standards.
Durability: Properly buried wires are less likely to deteriorate due to environmental factors such as freezing, wet conditions, or physical pressure from objects above the ground.
Key Electrical Codes for Burying Wires
The National Electrical Code (NEC) provides the guidelines for the safe installation of electrical systems in the U.S., including underground wiring. Here’s an overview of the most relevant sections of the NEC code concerning buried electrical wires:
1. Minimum Burial Depths for Different Wire Types (NEC 300.5)
The depth at which you need to bury your electrical wires depends on the type of wire or conduit used. These depths are designed to protect the wires from physical damage, weather, and interference from outside forces. Here’s a breakdown of common wire types and their recommended burial depths:
Non-Metallic Sheathed Cable (NM or Romex):
Burial depth: 24 inches (61 cm) when buried directly in soil.
If placed in a conduit, the depth can be reduced to 18 inches (46 cm).
Use case: For dry indoor areas, NM cable is often used, but it’s not suitable for outdoor direct burial unless it’s the UF (Underground Feeder) cable variant.
Underground Feeder (UF) Cable:
Burial depth: 24 inches (61 cm) for direct burial.
This wire is designed for use in outdoor and underground environments and can be buried directly in soil without the need for conduit.
Electrical Conduit (PVC, EMT, Rigid Metal Conduit):
Burial depth for PVC: 18 inches (46 cm).
Burial depth for Rigid Metal Conduit (RMC): 6 inches (15 cm).
Use case: Ideal for areas where the wires may face potential damage from physical pressure or environmental factors, like driveways or heavily trafficked areas.
Armored Cable (BX):
Burial depth: 18 inches (46 cm) for direct burial or 6–12 inches (15–30 cm) if placed within a protective conduit.
Used in areas with moderate physical risk and for adding additional protection to the wiring.
2. Additional Code Considerations
Trenching Requirements: The NEC (300.5) specifies that trenches for underground wiring must be at least 12 inches (30 cm) wide, with proper markers to identify the buried wires. This ensures that anyone working in the area can easily locate the wires and avoid accidental damage.
Conduit Protection: When using PVC or Rigid Metal Conduit, the wire inside must also be protected from corrosion and moisture. PVC conduit is recommended for areas where the soil is wet or acidic, while metal conduit provides better protection in areas prone to physical damage.
Warning Tape: For additional safety, a warning tape should be placed 12 inches (30 cm) above the buried wire to indicate its presence. This helps prevent accidental digging into the wire later on.
Minimum Clearances: If you’re burying electrical cables near other utilities like gas or water pipes, be sure to follow the minimum clearance distances mandated by your local code. Generally, these clearances range from 12 inches to 36 inches (30 cm to 90 cm), depending on the type of utility and the depth of the wiring.
Environmental Factors Affecting Burial Depth
In addition to NEC guidelines, local conditions such as soil type, moisture levels, and weather conditions can impact the depth at which you bury electrical wires. Some situations that may require deeper burial include:
Frost Line: If you live in a region where the ground freezes during the winter, you may need to bury your electrical wires below the frost line to prevent damage from freezing temperatures.
High Traffic Areas: If the wires will be installed under driveways, roadways, or other high-traffic areas, you may need to bury them deeper or use more robust conduit (e.g., rigid metal conduit) to prevent damage from pressure or impact.
Waterlogged Soil: If you’re installing wiring in a low-lying area where water collects, it may be necessary to bury the wire deeper or use special water-resistant cables to protect them from moisture damage.
When to Consult an Expert
While this guide provides a solid understanding of burial codes for electrical wires, it’s always a good idea to consult with a licensed electrician before starting any underground electrical installation. An electrician can help ensure that your wiring meets all local codes and is installed safely and efficiently. They can also advise on whether special protections, such as conduit or additional waterproofing, are necessary for your particular installation.
Conclusion: Stay Safe and Code-Compliant
When installing buried electrical wires, following the NEC and local building codes is essential for both safety and reliability. Whether you’re laying underground cables for outdoor lighting, power lines, or electrical appliances, taking the time to understand the burial depth and material requirements will ensure your installation lasts for years and minimizes the risk of future damage.
By adhering to code requirements, choosing the correct materials, and considering local environmental factors, you can successfully complete your electrical installation while maintaining safety and compliance.
Key Takeaways:
Make sure to follow NEC 300.5 for proper burial depths.
Always use conduit for added protection in high-risk areas.
Factor in environmental conditions like moisture and soil type when determining burial depth.
Consult with a licensed electrician to ensure compliance and safety.
