CY Cable, also known as CY Screened Cable or CY Control Cable, is a flexible, shielded multi-core cable designed for signal transmission and control applications in environments where electromagnetic interference (EMI) could impact performance. It features a transparent PVC sheath, tinned copper wire braid, and number-coded conductors, making it ideal for machine control, instrumentation, automation systems, and data signal transmission.

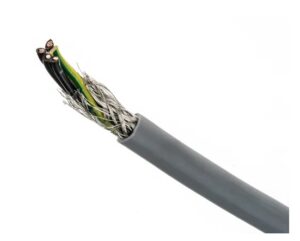

cy cable
Key Features of CY Cable
-
Shielded Design: Tinned copper wire braid (85% coverage) provides reliable EMI protection.
-
Flexible Structure: Suitable for installations requiring movement, including machinery and control panels.
-
Clear PVC Sheath: Offers easy inspection and mechanical protection.
-
Color/Number-Coded Conductors: Simplifies installation and circuit identification.
CY Cable Construction
| Component | Description |
|---|---|
| Conductor | Stranded plain copper, Class 5 (flexible) |
| Insulation | PVC (Polyvinyl Chloride) |
| Shield | Tinned Copper Wire Braid |
| Sheath | Transparent PVC |
| Voltage Rating | 300/500V |
| Temperature Range | -5°C to +70°C (Fixed); -15°C to +70°C (Flexed) |
| Standards | EN 50525-2-11, IEC 60228, CE, RoHS compliant |
Applications of CY Cable
-
Machine tool wiring
-
Industrial automation
-
Measurement and control equipment
-
Signal and data transfer with EMI protection
-
Robotics and conveyor systems
-
HVAC and Building Management Systems (BMS)
Note: CY cables are suitable for indoor fixed and flexible installations. Not recommended for direct burial or outdoor UV exposure without protective conduit.
Benefits of CY Control Cable
-
🛡 EMI Shielding: Tinned copper braid minimizes signal distortion and electrical noise.
-
🔧 Flexible Installation: Ideal for cable chains and moving parts.
-
🔌 Reliable Signal Transmission: Maintains integrity in industrial noise-prone environments.
-
🔍 Easy Identification: Number-coded conductors reduce installation errors.
Common CY Cable Variants
-
CY Cable 1.5mm² 4 Core
-
CY Control Cable 0.75mm² 7 Core
-
CY Screened Cable 2.5mm² 12 Core
-
CY Cable 1mm² 25 Core
Need a custom configuration or cut-to-length? Contact us for tailored CY cable solutions.
CY Cable vs SY Cable vs YY Cable
| Feature | CY Cable | SY Cable | YY Cable |
|---|---|---|---|
| Shielding | Tinned copper wire braid | Galvanized steel braid | No shielding |
| EMI Protection | ✅ High | ⚠️ Limited | ❌ None |
| Flexibility | ✅ High | ✅ Medium | ✅ High |
| Typical Use Case | Data & signal control | Mechanical protection zones | General control wiring |
Buy CY Cable from TOT Wire & Cable
We supply a wide range of CY cables at competitive prices with reliable quality and fast shipping across the country. Our cables meet international standards and are suitable for industrial and commercial applications where shielded signal transmission is essential.
