Installing or upgrading a car stereo in your Ford vehicle? Understanding the Ford radio wire harness color codes is essential for a smooth and accurate installation. This guide covers standard wire color meanings, how to match them to aftermarket stereos, and tips for safe installation—helping both DIY enthusiasts and professionals.

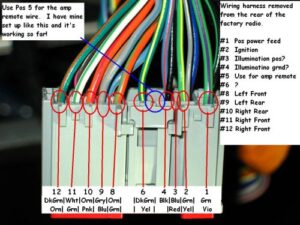

Factory Wiring Harness Ford Radio Wire Harness Color Codes
Why Wire Color Codes Matter
Each wire in a Ford factory harness serves a specific purpose—power, ground, speakers, etc. Matching the right wires ensures proper functionality of your radio, speakers, and even steering wheel controls.
A misconnected wire can result in:
-
No sound
-
Power issues
-
Electrical shorts
-
Damage to your radio or vehicle electronics
Standard Ford Radio Wire Harness Color Codes
While Ford may vary colors slightly across models or years, most follow this common layout:
| Wire Color | Function |
|---|---|
| Yellow | Constant 12V (Battery) |
| Red | Switched 12V (Ignition) |
| Black | Ground |
| Blue | Power Antenna / Amplifier Turn-On |
| Blue with White | Amplifier Turn-On |
| Orange with White | Illumination / Dimmer |
| Gray | Front Right Speaker (+) |
| Gray with Black | Front Right Speaker (–) |
| White | Front Left Speaker (+) |
| White with Black | Front Left Speaker (–) |
| Purple | Rear Right Speaker (+) |
| Purple with Black | Rear Right Speaker (–) |
| Green | Rear Left Speaker (+) |
| Green with Black | Rear Left Speaker (–) |
Notes:
-
Orange/white wires may control backlighting or dimming on certain head units.
-
Blue wires are only used if you have a powered antenna or factory amplifier.
Model-Specific Variations
Different Ford models (like the F-150, Focus, Mustang, or Explorer) or years may use slightly different configurations. Always consult:
-
Your vehicle's service manual
-
Wiring diagrams for the specific model and year
-
The aftermarket stereo's wiring chart
Matching Aftermarket Stereo Harness
When installing an aftermarket head unit:
-
Use a Ford-specific wiring harness adapter.
-
Match wire colors from the Ford harness to the stereo harness.
-
Solder and heat-shrink connections or use crimp connectors.
Example Pairing
| Aftermarket Stereo | Ford Harness |
|---|---|
| Yellow (12V Constant) | Yellow |
| Red (Ignition) | Red |
| Black (Ground) | Black |
| Blue/White (Amp) | Blue or Blue/White |
| Speaker wires | Match colors exactly |
Tools and Supplies Needed
-
Wire stripper/crimper
-
Multimeter (to confirm voltages)
-
Heat shrink or electrical tape
-
Soldering iron (optional but preferred)
-
Ford stereo wiring adapter (strongly recommended)
Troubleshooting Tips
-
No power to the radio? Check the yellow (constant) and red (ignition) wires.
-
Speakers not working? Verify correct polarity (+/-) and matching colors.
-
Dim screen or lights flicker? Double-check the orange/white illumination wire.
-
No amp sound? Ensure blue/white wire connects properly to amp turn-on.
Safety Reminder
Always disconnect your car battery before working on electrical systems.
Conclusion
Knowing the Ford radio wire harness color codes is the key to a successful and safe stereo installation. Whether you're replacing a stock unit or adding modern features, following these color guides ensures compatibility and performance.
For best results, always use a wiring harness adapter and consult your specific Ford model’s diagram. If you’re ever unsure, consult a professional installer to avoid costly mistakes.
