Understanding the headlight wire color code is essential for anyone working on vehicle lighting systems. Whether you're replacing a bulb, installing aftermarket headlights, or troubleshooting electrical issues, knowing what each wire color represents can save time and prevent costly mistakes.
This guide covers the most common headlight wire color codes across various car manufacturers, how to identify them, and practical tips for wiring and diagnostics.
Why Headlight Wire Color Code Matters
The headlight system in your car typically includes low beam, high beam, ground, and sometimes DRL (Daytime Running Light) or signal wires. Each of these functions is controlled by a different wire, and manufacturers use color codes to distinguish them. If miswired, you could experience flickering lights, short circuits, or complete failure.

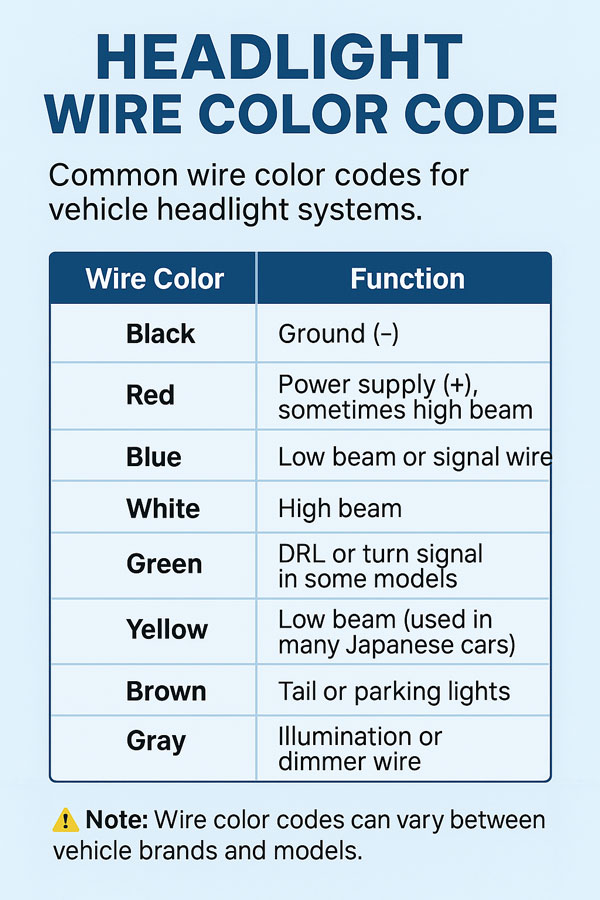

headlight wire color code
Common Headlight Wire Color Codes
Standard Color Codes (General Reference)
| Wire Color | Function |
|---|---|
| Black | Ground (-) |
| Red | Power supply (+), sometimes high beam |
| Blue | Low beam or signal wire |
| White | High beam |
| Green | DRL or turn signal in some models |
| Yellow | Low beam (used in many Japanese cars) |
| Brown | Tail or parking lights |
| Gray | Illumination or dimmer wire |
⚠️ Note: Wire color codes can vary between vehicle brands and even specific models. Always verify with the car's service manual or a multimeter before making any changes.
Headlight Wire Color Code by Manufacturer (Typical Examples)
Toyota & Lexus
-
Black: Ground
-
Red/Yellow: Low beam
-
Red/White: High beam
-
Green: DRL or signal
Ford
-
Black: Ground
-
Light Green/Black: Low beam
-
Light Green/Red: High beam
Honda & Acura
-
Black: Ground
-
Red/Blue: Low beam
-
Red/White: High beam
GM (Chevrolet, GMC, etc.)
-
Black: Ground
-
Tan: Low beam
-
Green: High beam
How to Identify Headlight Wires
1. Use a Multimeter
Set your multimeter to DC voltage and probe each wire while the headlight system is on. This method is accurate and helps confirm which wire powers each function.
2. Refer to Wiring Diagrams
Check your vehicle’s owner’s manual or look for the official wiring diagram online. This will often list the exact wire color code for headlights and other lighting systems.
3. Use Wire Labels or Markers
If replacing or extending wires, use color-coded tape or labels to avoid confusion during reassembly.
Headlight Wiring Tips
-
Always disconnect the battery before working on vehicle wiring.
-
Use weatherproof connectors for long-lasting connections.
-
If upgrading to LED or HID headlights, verify that the wire gauge and color codes are compatible.
-
When in doubt, consult a professional or certified automotive electrician.
When Color Codes Don't Match
In older vehicles or custom wiring jobs, the colors might not follow any standard. In this case:
-
Test each wire manually using voltage and continuity tests.
-
Trace the wires back to the fuse box or switch to understand their purpose.
-
Re-label wires to align with your setup and ensure safe operation.
Conclusion
Recognizing the correct headlight wire color code is crucial for safe and efficient headlight installation or repair. While there is some variation between car brands, the general color code system helps guide most DIY enthusiasts and professionals.
Whether you’re restoring a classic car or modifying modern headlights, following the proper wire color codes ensures optimal performance and safety on the road.
