High Voltage Cable Types: A Complete Guide to Choosing the Right Solution

High voltage cables are the backbone of modern power transmission systems, enabling the efficient transfer of large amounts of electricity over long distances. Whether in power grids, industrial plants, or renewable energy projects, selecting the right type of high voltage cable is crucial for performance, safety, and cost-effectiveness.

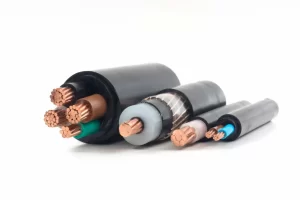

high voltage cable types

In this guide, we’ll explore the main types of high voltage cables, their construction, applications, and key differences—helping engineers, procurement managers, and project planners make informed choices.

1. What Is a High Voltage Cable?

A high voltage (HV) cable is designed to transmit electricity at voltages typically above 35 kV (kilovolts). These cables feature special insulation, shielding, and protective layers to withstand electrical stress, environmental factors, and mechanical loads.

High voltage cables are used in:

• Transmission lines from power plants to substations

• Industrial machinery and heavy equipment

• Offshore wind farms and solar farms

• HVDC (High Voltage Direct Current) transmission systems

2. Main Types of High Voltage Cables

2.1 XLPE Insulated High Voltage Cables

• Full Name: Cross-Linked Polyethylene Insulated HV Cable

• Features: High thermal resistance, low dielectric loss, lightweight compared to oil-filled cables.

• Advantages: Easy installation, low maintenance, environmentally friendly.

• Applications: Underground transmission lines, offshore renewable energy connections, urban grid networks.

2.2 Oil-Filled High Voltage Cables

• Types: Self-Contained Oil-Filled (SCOF) and Pipe-Type Oil-Filled cables.

• Features: Oil acts as an insulating and cooling medium, reducing electrical stress.

• Advantages: High load capacity, proven long-term reliability.

• Applications: Long-distance underground transmission, especially in older installations.

2.3 Gas-Insulated High Voltage Cables

• Insulation Medium: SF₆ (Sulfur Hexafluoride) or other inert gases.

• Advantages: Compact design, excellent arc-resistance, suitable for high-voltage switchgear connections.

• Applications: Dense urban environments, tunnels, and substations where space is limited.

2.4 HVDC Cables

• Function: Designed for High Voltage Direct Current transmission.

• Types: Mass-impregnated paper-insulated and XLPE-insulated HVDC cables.

• Advantages: Efficient for long-distance power transfer with minimal energy loss.

• Applications: Subsea interconnectors, cross-country power links, offshore wind farms.

2.5 Paper-Insulated Lead-Covered (PILC) Cables

• Features: Paper impregnated with insulating oil, covered by a lead sheath.

• Advantages: Excellent mechanical protection, durable in harsh conditions.

• Applications: Legacy power networks, still in use for certain underground installations.

2.6 Overhead High Voltage Cables

• Construction: Aluminum or aluminum-alloy conductors with steel reinforcement (ACSR).

• Advantages: Low cost, easy installation, minimal insulation required.

• Applications: Transmission lines over long spans in open areas.

3. How to Choose the Right High Voltage Cable

When selecting an HV cable, consider:

• Voltage Rating (e.g., 66 kV, 132 kV, 220 kV, 500 kV)

• Installation Environment (underground, overhead, subsea)

• Load Capacity and expected operating temperature

• Maintenance Requirements

• Compliance with IEC, IEEE, or local utility standards

4. Safety and Standards

High voltage cable systems must meet strict international standards such as:

• IEC 60840 (HV cables above 30 kV up to 150 kV)

• IEC 62067 (Extra HV cables above 150 kV)

• IEEE 48 & IEEE 404 (cable terminations and joints)

Proper installation and testing are essential to prevent electrical failures, overheating, or insulation breakdown.

Conclusion

High voltage cables are a vital part of our power infrastructure, and choosing the right type can significantly improve efficiency, safety, and long-term reliability. From XLPE-insulated cables for modern urban networks to HVDC subsea cables connecting renewable energy farms, each type serves a unique role in today’s energy landscape.
