Power lines are essential for transporting electricity, but not all power lines are the same. High-voltage power lines and regular power lines (low- to medium-voltage lines) differ in voltage levels, purpose, structure, and safety requirements. Understanding these differences can help you better grasp how electricity travels from power plants to your home.

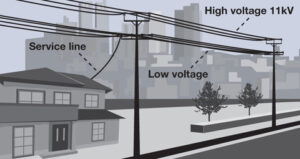

high voltage power lines vs regular power lines
1. What Are High Voltage Power Lines?
High voltage power lines are designed to carry large amounts of electricity over long distances with minimal energy loss.
Key Characteristics:
Voltage Level: Typically 110 kV – 765 kV (sometimes higher for ultra-high-voltage lines).
Structure: Tall steel lattice towers or monopoles with multiple insulators.
Purpose: Transmit electricity from generation plants to substations.
Location: Often found crossing rural landscapes, mountains, or spanning large open areas.
2. What Are Regular Power Lines?
Regular power lines, also called distribution or service lines, deliver electricity from substations to end users like homes, offices, and small businesses.
Key Characteristics:
Voltage Level: Usually 120–240 V for households (up to 35 kV for local distribution).
Structure: Wooden utility poles, often with transformers nearby.
Purpose: Power appliances, lighting, and electronics.
Location: Commonly seen in residential streets or buried underground in cities.
3. High Voltage vs Regular Power Lines: Key Differences
| Aspect | High Voltage Power Lines | Regular Power Lines |
|---|---|---|
| Voltage Range | 110 kV – 765 kV | 120–240 V (homes) / up to 35 kV (local) |
| Purpose | Long-distance bulk power transmission | Final distribution to homes/businesses |
| Structure | Steel towers, large insulators | Wooden poles or underground cables |
| Distance | Spans hundreds of miles | Serves local neighborhoods |
| Safety Zone | Requires large clearances (dangerous if close) | Lower risk, but still needs caution |
4. Why Do We Use High Voltage for Transmission?
Electricity loses energy (as heat) when transmitted over long distances. By increasing the voltage and reducing the current, high-voltage lines minimize energy loss and improve efficiency.
5. Are High Voltage Lines More Dangerous?
Yes. High-voltage lines carry far more power and can cause fatal shocks even from indirect contact (like through a ladder or tree). This is why they are placed high above the ground with strict safety zones.
6. How to Tell the Difference
Look up: High voltage lines are supported by tall metal towers with multiple arms and large insulators.
Neighborhood poles: Regular lines are lower on wooden poles, often connected directly to homes.
7. Key Takeaways
High voltage lines = long-distance transmission from power plants to substations.
Regular lines = local distribution to homes and businesses.
They work together in a power delivery chain: Generation → Transmission (high voltage) → Distribution (regular lines).
