Introduction: Why Burying Electrical Wire Correctly Matters
When you're installing electrical wiring outdoors, one of the most important questions you need to answer is how deep to bury electrical wire. This seemingly simple task is not only about protecting the wire but ensuring safety and compliance with local electrical codes. Incorrectly buried wires can result in dangerous shorts, potential fires, and costly repairs. Let’s break down the specifics of wire burial depths, common practices, and why these guidelines are critical.

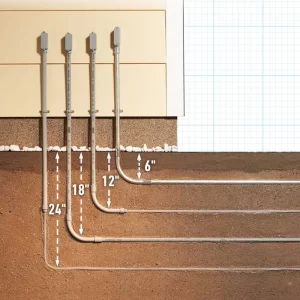

how deep to bury electrical wire
📏 General Guidelines for Burying Electrical Wire
The depth at which you bury electrical wire varies depending on several factors including the type of wire, its usage, and the environment. Here’s a quick guide for common burial depths:
Non-Metallic Sheathed Cable (NM) / Romex Wire:
Standard Depth: 24 inches (61 cm)
Code Reference: NEC (National Electrical Code) requires this depth to minimize the risk of physical damage.
Direct Burial Cable (UF Wire):
Standard Depth: 18 inches (46 cm)
Code Reference: Typically required for residential applications when wiring is used underground without additional conduit protection.
Electrical Conduit (PVC or EMT) with Wires:
Standard Depth: 18-24 inches (46-61 cm), depending on the type of conduit and local regulations.
Code Reference: If you use conduit, it provides additional protection against physical damage, so the wire inside doesn’t need to be as deep as direct burial cable.
Under Driveways, Roadways, or Areas with Heavy Traffic:
Standard Depth: 24-30 inches (61-76 cm) or more.
Reason: Extra depth is necessary to prevent damage from vehicles or heavy machinery.
Low-Voltage Cables (Landscape Lighting, Irrigation):
Standard Depth: 6-12 inches (15-30 cm).
Reason: Low-voltage cables are less likely to be damaged but still need protection from environmental conditions.
🛠 Key Factors Affecting Burial Depth
While the NEC code provides a good starting point, the depth at which you bury electrical wire can depend on several critical factors, including:
Wire Type:
Different wires, such as THWN, UF, and NM, have different protection levels, influencing the required burial depth.Wire Usage:
A cable running to a shed or light pole might require a deeper burial compared to one powering a small appliance.Soil Type and Environment:
In areas with rocky soil or freeze-prone climates, deeper burial depths may be necessary to prevent damage due to physical forces or freezing conditions.Local Codes:
Always check local building codes as they might require deeper burial or different specifications than national codes. Some regions might have specific mandates based on soil conditions or environmental concerns.
📚 Common Wiring Types and Their Recommended Burial Depths
| Wire Type | Recommended Burial Depth | Notes |
|---|---|---|
| Non-Metallic Sheathed Cable (NM) | 24 inches (61 cm) | Most commonly used for residential wiring. |
| Underground Feeder Cable (UF) | 18 inches (46 cm) | Direct burial without additional conduit. |
| Electrical Conduit (PVC) | 18-24 inches (46-61 cm) | Must be used when running in areas with risk of physical damage. |
| Electrical Conduit (Metal) | 6-24 inches (15-61 cm) | Depending on the environment (less depth if protected from damage). |
| Low-Voltage (Landscape Wiring) | 6-12 inches (15-30 cm) | Typically for lighting, irrigation, etc. |
| Under Roads or Driveways | 24-30 inches (61-76 cm) | For added protection due to vehicle weight and vibration. |
⚖️ How to Choose the Right Burial Depth for Your Situation
When deciding how deep to bury electrical wire, it’s important to consider not only code but also future accessibility. In areas like yards or gardens, you might want to opt for conduit protection and deeper burial to ensure long-term durability. Conversely, in dry areas with minimal movement, lighter wiring systems might suffice.
💡 Key Considerations Before You Dig
Check Local Codes: Always verify local electrical codes, as they can vary depending on where you live. For instance, areas in colder climates might require additional depth to avoid wire freeze-ups.
Use Conduit for Extra Protection: If you're running wire in an area with heavy foot traffic or potential for digging, use PVC or metal conduit to safeguard the wiring.
Avoid Running Wires Near Other Utilities: Be mindful of existing water, gas, or sewer lines. You may need to adjust the burial depth to avoid interfering with these systems.
🛑 Potential Risks of Improper Burial Depth
Improper burial depth or incorrect installation methods can lead to severe issues such as:
Physical Damage: Cables may be accidentally cut or punctured by digging, leading to dangerous short circuits or electrical fires.
Overheating: Insufficient depth or poor insulation can result in the cables overheating, which can compromise the electrical system’s efficiency.
Code Violations: Not adhering to local and national standards can result in fines, unsafe conditions, or even voiding your home insurance policy.
⚡ Conclusion: Ensuring a Safe and Compliant Installation
Burying electrical wire properly is a fundamental part of any electrical project, whether you're running power to an outdoor shed, installing landscape lighting, or setting up a new circuit. Understanding the correct burial depth ensures the safety, functionality, and longevity of your electrical installation. Always adhere to the NEC guidelines and local building codes to avoid costly mistakes and ensure safety.
Before digging, make sure to consult a professional or local authorities to double-check compliance requirements and prevent any potential hazards.
