Using banana plugs for your speaker connections not only looks clean—it also makes setup and teardown much easier. If you're wondering how to attach speaker wire to banana plugs, this article walks you through everything you need to know: tools, wire prep, plug types, and connection steps.

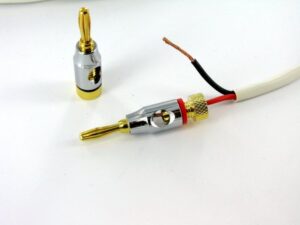

how to attach speaker wire to banana plugs
🎯 Why Use Banana Plugs?
Before jumping in, here's why banana plugs are a smart upgrade:
✅ Provide a secure, professional connection
✅ Avoid fraying and short circuits
✅ Make plugging into AV receivers or speakers easier
✅ Help keep your home theater tidy and organized
🔍 Types of Banana Plugs
There are a few common styles of banana plugs:
| Type | Description |
|---|---|
| Screw-type | Wire is secured by tightening a screw—easy and reusable |
| Closed screw / Compression-type | Wire is inserted and held with a back cap or twist-down design |
| Solder-type | Offers a permanent, high-conductivity connection (less common for DIY) |
| Stackable | Allow other banana plugs to plug into the back—ideal for bi-wiring setups |
For most home users, screw-type or compression-type plugs are best.
🧰 What You’ll Need
Speaker wire (typically 12–16 AWG)
Banana plugs (matched to your wire gauge)
Wire stripper or utility knife
Small flathead screwdriver (for screw-type plugs)
🛠️ How to Attach Speaker Wire to Banana Plugs (Step-by-Step)
🔹 Step 1: Measure and Cut the Speaker Wire
Cut your speaker wire to the desired length using wire cutters. Make sure you account for routing around corners or equipment.
🔄 Tip: Leave a little slack for future adjustments.
🔹 Step 2: Strip the Insulation
Use a wire stripper to remove about 1/2 inch (12–13 mm) of insulation from each end of the wire. Be careful not to nick the copper strands inside.
🔹 Step 3: Twist the Copper Strands
Twist the exposed copper strands tightly between your fingers to keep them together. This prevents stray strands from causing shorts.
🔹 Step 4: Identify Polarity
Most speaker wires are marked with a stripe, text, or color to show polarity:
+ (positive) = marked side
– (negative) = unmarked side
Make sure you connect the same polarity on both ends (amplifier and speaker) to maintain phase.
🔹 Step 5: Attach the Wire to the Banana Plug
For screw-type plugs:
Unscrew the back cap (if there is one).
Insert the bare wire into the hole or barrel.
Tighten the set screw or collar to secure the wire.
Screw the back cap back on (if applicable).
For closed-screw or compression plugs:
Insert wire into the back of the plug.
Twist the outer casing to clamp down.
Make sure no copper strands are exposed.
🔹 Step 6: Test the Connection
Give the wire a gentle tug to make sure it’s firmly in place. If it slips out, re-strip and tighten again.
✅ Final Check: Plug Into Speakers & Receiver
Once all plugs are installed:
Match positive to positive and negative to negative terminals on your speaker and amplifier/receiver.
Enjoy a cleaner, safer, and more reliable setup!
📦 Bonus Tips
Use 12 AWG wire for long runs or high-power systems.
Label both ends of your cables if you’re connecting multiple speakers.
If using wall plates, make sure the banana plugs are compatible with the panel jacks.
🧠 Summary
| Task | Details |
|---|---|
| Cut wire | Measure for length + slack |
| Strip insulation | 1/2 inch (12 mm) per end |
| Attach to plug | Insert & tighten (screw or compression style) |
| Match polarity | Keep + and – consistent |
