How to Connect Stranded Wire to a Screw Terminal: Step-by-Step Guide

Connecting stranded wire to a screw terminal—like those found in outlets, switches, thermostats, or electrical devices—might seem simple. But if not done correctly, it can lead to poor contact, frayed strands, overheating, or even short circuits.

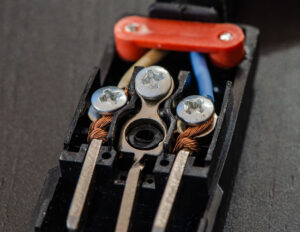

how to connect stranded wire to screw terminal

This guide will show you the right way to make a safe and reliable stranded wire connection to a screw terminal.

📌 Why It Matters

Unlike solid wire, stranded wire is made of multiple fine strands, making it flexible but also more prone to spreading out when clamped under a screw. If even one strand escapes, it could cause arcing or loose connections.

🧰 What You’ll Need

• Wire strippers

• Screwdriver

• Ferrules (optional, but recommended)

• Crimping tool (if using ferrules)

• Needle-nose pliers (optional)

🧭 Method 1: Connect Stranded Wire Directly (Basic Method)

✅ Step-by-Step:

1. Strip the Insulation
   Remove about ½ inch (12–14 mm) of insulation from the end of the stranded wire.

2. Twist the Strands
   Hold the wire between your fingers and twist the copper strands tightly in a clockwise direction. This keeps them bundled together.

3. Form a Hook (Optional)
   Use needle-nose pliers to bend the wire into a small hook that fits around the screw.

4. Wrap the Wire Around the Terminal
   Loop the wire clockwise around the screw terminal. This ensures that tightening the screw pulls the wire in tighter.

5. Tighten the Screw Firmly
   Make sure the wire is fully under the screw head and no strands are escaping.

🛡️ Method 2: Use Ferrules (Best Practice)

Ferrules are small metal sleeves that crimp over the strands, turning stranded wire into a solid-like end. They’re especially useful in industrial or high-vibration environments.

✅ Steps:

1. Strip about 8–10 mm of insulation.

2. Insert the stripped wire into the ferrule.

3. Use a crimping tool to firmly crimp the ferrule onto the wire.

4. Insert the ferrule into the terminal and tighten the screw.

🔒 Result: Cleaner, safer, and more secure connection—especially when dealing with fine or high-strand wire.

❌ Common Mistakes to Avoid

• Do NOT insert untwisted strands under the screw—some strands may escape.

• Do NOT wrap the wire counterclockwise—tightening will push the wire out.

• Avoid over-stripping—exposed copper outside the terminal is a hazard.

• Do NOT overtighten the screw to the point of damaging the wire.

🧪 Testing the Connection

After installation:

• Gently tug on the wire to check that it’s firmly secured.

• Visually inspect for stray strands.

• Optionally test with a continuity tester or multimeter.

🧰 When to Use Each Method

✅ Summary: The Right Way to Do It

To connect stranded wire to a screw terminal:

• Twist the strands

• Wrap clockwise

• Tighten securely

• Or better yet—use ferrules for a professional finish.

Taking the time to make the connection properly improves safety, conductivity, and reliability—whether you’re wiring a light switch or a circuit board.
