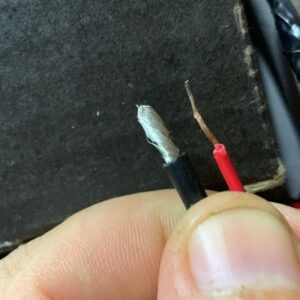

How to Connect Thin Wire to Thick Wire: A Practical Guide

🧰 Tools and Materials You May Need

• Wire stripper

• Crimp connectors or terminal blocks

• Soldering iron & solder (optional)

• Heat shrink tubing or electrical tape

• Ferrules (optional)

• Wago connectors or wire nuts (for household wiring)

✅ Best Methods for Connecting Thin Wire to Thick Wire

1. Using a Terminal Block (Screw Terminal Block)

Best for: Electrical panels, control systems, automation wiring

• Strip both wires.

• Insert each wire into its designated port.

• Tighten the screws securely.

• Use ferrules for stranded wire if possible.

👍 Pros: Safe, reusable, neat
👎 Cons: Bulky for small enclosures

2. Soldering + Heat Shrink Tubing

Best for: Electronics, DIY repairs

• Twist the stripped wires together (thin around thick).

• Solder them using a good-quality soldering iron.

• Cover the joint with heat shrink tubing for insulation.

👍 Pros: Strong, compact connection
👎 Cons: Requires soldering skills, not ideal for high-current loads

3. Crimp Connectors (Butt Connectors or Step-Down Butt Splice)

Best for: Automotive wiring, home devices

• Use a step-down crimp connector that accommodates different wire sizes on each end.

• Insert each wire and crimp with the appropriate tool.

• Finish with heat shrink tubing or tape.

👍 Pros: Secure, fast
👎 Cons: Requires crimping tool, one-time use

4. Wago Lever-Nuts or Push-In Connectors

Best for: Household wiring (low voltage), light fixtures

• These allow different wire sizes to be connected in one unit.

• No tools required—just strip and push in or lever down.

👍 Pros: Easy, tool-free, reusable
👎 Cons: Slightly expensive, not suitable for tight spaces

5. Wire Nuts (Twist-on Wire Connectors)

Best for: Home electrical wiring

• Place the stripped wires together and twist on a wire nut rated for differing sizes.

• Tug gently to ensure the wires are securely twisted.

👍 Pros: Common, simple
👎 Cons: May not grip small wire well unless using a nut rated for mixed gauges

⚠️ Safety Tips

• Always turn off power before working with electrical connections.

• Match connectors to wire gauge combinations (check packaging).

• Never leave exposed copper wire.

• Avoid simply twisting and taping wires—this is not reliable or safe.

🧪 Example Use Case

Say you're connecting a 22 AWG wire (LED light) to a 14 AWG wire (power supply). Use:

• A step-down crimp connector, or

• A terminal block with ferrules on the thin wire, or

• Solder and shrink wrap for compact spaces

🧯 When to Avoid Connecting Wires of Different Sizes

• In high-amperage circuits (unless connectors are rated for it)

• If the joint will be subject to frequent movement or vibration

• In permanent building wiring (consult code or electrician)

✅ Conclusion

Connecting a thin wire to a thick one can be done safely and professionally with the right method. For most projects, crimp connectors or terminal blocks offer the most secure connection. Avoid makeshift solutions—use connectors that match your wire gauges and application.
