Wiring a 3-way light switch may seem complex at first glance, but once you understand the working principle and wiring layout, it becomes a manageable DIY or professional electrical task. Whether you're installing a new light or replacing an old switch, this guide will walk you through everything you need — including diagrams, materials, and tips.

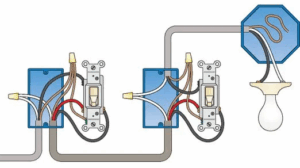

How to Wire a 3-Way Switch
🔧 What Is a 3-Way Switch?
A 3-way switch allows you to control a single light or lighting circuit from two different locations — for example, from both the top and bottom of a staircase or at opposite ends of a hallway.
In this setup, there are two switches and one light fixture. The switches work together, and flipping either one changes the light’s state (on or off), no matter the position of the other.
🧠 Key Terms to Understand
Traveler Wires: These connect the two 3-way switches and carry signals between them.
Common Terminal: The dark-colored screw on the switch where the hot wire (from power source or to the light) is connected.
Ground Wire: Bare copper or green wire for safety grounding.
Line (Hot): Incoming power from the breaker panel.
Load: Wire going to the light fixture.
📋 Materials & Tools You’ll Need
Two 3-way switches
14/3 or 12/3 cable (depending on load — includes black, red, white, and ground)
Screwdrivers
Voltage tester
Wire strippers
Electrical tape
XLPE insulated wire (for higher temperature resistance or industrial applications)
SWA cable (if installing in outdoor or underground areas requiring armoured protection)
💡 Tip: For outdoor or underground 3-way switch runs, Steel Wire Armoured (SWA) cable is essential for durability and safety. For higher temperature or demanding environments, XLPE cable offers superior insulation performance.
📊 Standard 3-Way Switch Wiring Diagram
Here’s the most common configuration (power at the first switch):
Cable usage example:
From power to Switch 1: 14/2 or 12/2 cable
Between Switch 1 and Switch 2: 14/3 or 12/3 cable (black, red, white, ground)
From Switch 2 to the light: 14/2 or 12/2 cable
💡 Wiring Steps
Turn off power at the breaker.
Run the appropriate cables to and between switches and light fixture.
Connect:
Black hot wire to common terminal of Switch 1
Red and black traveler wires between both switches’ traveler terminals
White neutral wire straight to the light fixture
Ground wire to each device and metal boxes
Connect the load (black wire from fixture) to the common terminal of Switch 2.
Secure connections with wire nuts, use tape if needed, and mount switches.
🌙 Can You Add a Dimmer to a 3-Way Switch?
Yes! Use a 3-way compatible dimmer. Replace either one of the switches with the dimmer, and wire the travelers and common as labeled.
