When you need to control a single light from three or more different locations, a 4-way switch system is what you need. This setup is common in large homes, staircases with landings, hallways with multiple entry points, or open-plan living areas. Though more complex than 3-way switching, wiring a 4-way switch can be straightforward once you understand how it works.
How to Wire a 4-Way Switch for Multiple Locations
🔎 What Is a 4-Way Switch?
A 4-way switch is used in between two 3-way switches to extend the control of a light or group of lights to more than two locations.
Basic structure:
3-way switch at the beginning
4-way switch in the middle
3-way switch at the end
You can add multiple 4-way switches to control the light from even more locations.
🧠 Electrical Terms You Should Know
3-Way Switch: A switch with three terminals (1 common, 2 travelers).
4-Way Switch: A switch with four terminals — it flips the current between two pairs of traveler wires.
Traveler Wires: Connect all switches in the system.
Common Terminal: On 3-way switches — where power or load is connected.
Line/Load: Line is incoming power; load goes to the light.
Ground: For safety, connected to each switch and metal box.
📦 What You Need to Wire a 4-Way Switch
Two 3-way switches
One or more 4-way switches (depending on how many control points you need)
Electrical boxes
14/3 or 12/3 cable (black, red, white, ground)
14/4 or 12/4 cable (optional — black, red, white, blue, ground for multiple travelers)
Voltage tester
Screwdriver, wire stripper
XLPE cable or SWA cable (for demanding or outdoor environments)
Tip: For outdoor switch setups or long-distance runs through rough environments, use SWA cable for protection, or XLPE insulated wire for higher temperature resistance.

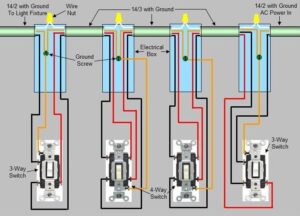

📊 Standard 4-Way Switch Wiring Diagram
Let’s look at a basic 4-way configuration with one 4-way switch between two 3-way switches.
🧱 Cable Between Switches:
From first 3-way to 4-way: 14/3 (or 14/4 if preferred)
From 4-way to final 3-way: 14/3
🧰 Step-by-Step: How to Wire a 4-Way Switch System
Turn off power at the breaker panel.
Run the cables:
Power source to first 3-way switch
Between switches (14/3 or 14/4 cables)
Last switch to light fixture
Wire the first 3-way switch:
Hot (line) wire to the common terminal
Travelers to the brass terminals
Wire the 4-way switch:
Connect the two traveler wires from the first switch to one pair of terminals
Connect the two traveler wires going to the next switch to the other pair
Wire the final 3-way switch:
Travelers to the brass terminals
Black wire going to the light (load) to the common terminal
Connect ground wires throughout
Restore power and test the switches.
🛠️ Common Use Cases for 4-Way Switch Systems
Large staircases with landings
Long corridors with three or more entry points
Warehouses or commercial spaces
Large living rooms with multiple entrances
In many of these applications, wiring may need to be routed through concrete, outdoors, or exposed locations — making SWA cable a smart choice. Likewise, XLPE cable is ideal for installations in hot or industrial environments where standard insulation may degrade.
💡 Should You Use XLPE or SWA Cable?
| Environment | Recommended Cable |
|---|---|
| Indoors (basic) | 14/3 NM or THHN |
| High-temp areas | XLPE cable |
| Underground / outdoors | SWA cable |
| Commercial / factory | XLPE + SWA combo |
TOT Wire & Cable supplies both XLPE and SWA cables in a wide range of sizes and configurations to match your installation requirements.
