If you're renovating a room or updating an old electrical setup, knowing how to connect a light switch and outlet in one combo unit can save time and space. These switch-outlet combos are commonly used in bathrooms, workshops, garages, and other utility spaces.
How to Wire a Light Switch and Outlet Combo
In this guide, we’ll cover common wiring methods, single- and dual-circuit options, and practical wiring diagrams. We’ll also discuss the best types of wire to use, such as THW, XLPE, or SWA cables, depending on the environment.
🔧 What Is a Switch-Outlet Combo?
A switch-outlet combo is a device that integrates a light switch and a power outlet in the same electrical box. It allows you to:
Control a light fixture using the switch
Power tools or appliances with the outlet
Use separate or shared power sources for each
📦 Common Use Cases
Bathrooms: One device controls the light and powers a hair dryer or shaver
Garages or Workshops: Control an overhead light and plug in power tools
Kitchens: Control under-cabinet lighting with a convenient nearby outlet
🧰 Materials You’ll Need
Switch/outlet combo device
Wire stripper
Screwdriver
Voltage tester
Wire nuts or terminal connectors
Proper cabling:
14 AWG THW or THHN for residential indoor use
XLPE cable for heat resistance
SWA cable for armored outdoor or garage installations
⚙️ Wiring Methods: Shared vs Separate Circuits
✅ 1. Shared Hot Wire (Single Circuit)
In this common setup, the switch and outlet share the same power source.
How it works:
Line (hot) wire enters the combo device
A jumper connects the hot terminal of the switch to the outlet
Neutral wire connects directly to the outlet and light fixture
Switch leg goes to the light fixture
📌 This method is easier to wire but doesn’t allow separate control (e.g., turning off the switch cuts power to the outlet too unless split).
✅ 2. Split Circuit (Two Power Sources)
Ideal when you want the switch and outlet to operate independently, often from two breakers or different circuits.
How it works:
Remove the metal tab (jumper) between hot terminals on the combo device
Connect one hot wire to the switch and another to the outlet
Neutral wires go to their respective loads
Ground wires connect to the device and box (if metal)
💡 Always check the device instructions to see if it's rated for split circuit wiring.

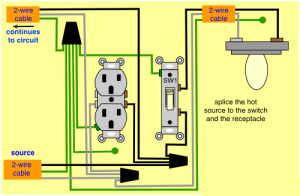

🔌 Sample Wiring Diagram Descriptions
You can wire a light switch and outlet combo in three main ways:
Switch Controls Light + Always-On Outlet
Switch Controls Outlet Only
Separate Switch and Outlet, Powered Independently
Need help visualizing the layout? I can provide a custom wiring diagram image on request.
⚡ Recommended Wire Types for Combo Installations
| Application | Recommended Cable | Why Use It |
|---|---|---|
| Indoor, standard load | THW or THHN 14/2 | Affordable, easy to strip |
| Long runs or high-heat areas | XLPE-insulated wire | Heat and abrasion resistance |
| Garage or outdoor switch-outlet box | SWA cable | Armored, moisture-proof |
TOT Wire & Cable offers all of these with competitive prices and dependable quality. Our XLPE and SWA cables are especially popular for switch-outlet installations in harsh environments.
🛑 Safety Reminders
Always turn off power at the breaker before wiring
Use a voltage tester to confirm wires are de-energized
Match the wire gauge to the circuit amperage (e.g., 14 AWG for 15A, 12 AWG for 20A)
Properly ground all metal boxes and devices
Follow local electrical codes and consult an electrician if unsure
✅ Conclusion: Practical, Space-Saving Wiring
Learning how to wire a switch outlet combo helps you reduce clutter and maximize efficiency. Whether you're using a shared hot circuit or setting up independent controls, the right materials and safe techniques make all the difference.
Looking for durable cable options?
TOT offers a wide range of:
XLPE cables for high-temperature or industrial settings
SWA armored cables for garages, outdoors, and mechanical rooms
📩 Contact TOT Wire & Cable today for technical advice or to request a quote.
