Controlling one light from two different locations is a common requirement in homes — especially in staircases, hallways, and large rooms with multiple entry points. A 2-way switch setup, also known as a 3-way switch system in North America, allows exactly that.

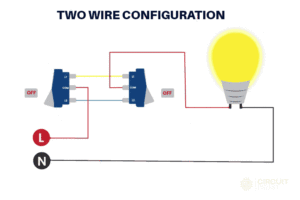

How to Wire a Two-Way Switch
This article explains how to wire a 2-way switch, what materials you need, and when to use more durable cables like XLPE cable or SWA cable for your installation.
🔧 What Is a Two-Way Switch?
A two-way switch system allows you to control a single light fixture from two locations. This is ideal for:
Top and bottom of staircases
Each end of a hallway
Large rooms with two doorways
In this system:
You use two SPDT switches (Single Pole Double Throw)
They are connected by two traveler wires
Either switch can turn the light ON or OFF
📦 What You'll Need
Two 2-way (or 3-way) switches
Electrical boxes
14/3 or 12/3 cable (with black, red, white, and ground wires)
XLPE or SWA cable (for outdoor, underground, or high-temperature installations)
Wire stripper and screwdriver
Voltage tester
Tip: For wiring in corridors with concrete walls or areas exposed to moisture, consider SWA cable for added mechanical protection. For high-temperature or industrial environments, XLPE cable provides superior insulation.
📊 Standard 2-Way Switch Wiring Diagram
A typical two-way switch setup looks like this:
Black wire: hot/live
Red wire: traveler
White wire: neutral
Ground: for safety
🧰 Step-by-Step Wiring Instructions
Turn off the power at the main panel.
Run the cable:
From power source to Switch 1
Between Switch 1 and Switch 2
From Switch 2 to the light fixture
Connect Switch 1:
Black (hot) wire to common terminal
Red and white traveler wires to the brass terminals
Connect Switch 2:
Travelers to brass terminals
Black wire to light fixture from common terminal
Connect the light fixture:
White neutral from panel directly to light
Black from switch 2 to the light
Connect all ground wires to switches and boxes.
Turn the power back on and test.
💡 Best Use Cases for Two-Way Switching
Two-way switching is especially useful in:
Residential stairwells
Hallways longer than 3 meters
Bedrooms with two entrances
Garage or basement entrances
🔌 When to Use XLPE or SWA Cable
Depending on your installation environment, standard indoor wiring may not be enough.
| Application Environment | Recommended Cable |
|---|---|
| Indoor / standard | NM-B or THHN |
| Outdoor / exposed conduit | XLPE cable |
| Underground or in concrete | SWA cable |
| High-heat / industrial areas | XLPE cable |
TOT Wire & Cable offers high-quality XLPE insulated wire and steel-wire-armored SWA cables that ensure durability and safety in demanding conditions.
