Low voltage conductors are essential for powering and controlling a wide range of residential, commercial, and industrial systems. Whether you’re installing a security system, thermostat, speaker, or landscape lighting, choosing the right conductor ensures performance, safety, and code compliance.

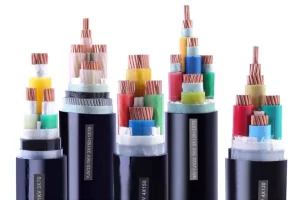

low voltage conductors
In this guide, you’ll learn:
What low voltage conductors are
Where they’re used
Key specifications (voltage, gauge, insulation, approvals)
Common types and use cases
How to select the right conductor
Safety and code considerations
FAQs
⚡ What Are Low Voltage Conductors?
Low voltage conductors are electrical wires used to carry power or signals at 50 volts or less. Unlike line-voltage wiring (120V/240V), low voltage systems are generally used for:
Signal transmission
Control circuits
Low-power lighting
Audio and data
These conductors can be solid or stranded, shielded or unshielded, and are often bundled into cables with multiple conductors for control or communication.
🏠 Common Applications of Low Voltage Conductors
| Application | Voltage Range | Typical Wire Type | Description |
|---|---|---|---|
| Thermostats | 24V | 18/2, 18/5 solid | Used in HVAC systems |
| Security Systems | 12–24V | 22/2, 22/4 stranded | For motion sensors, panels, alarms |
| Audio / Speakers | ≤24V | 16–12 AWG stranded | High-quality audio signal transmission |
| Ethernet / Data | <50V | Cat5e, Cat6 (UTP/STP) | For networking, VoIP, IP cameras |
| Landscape Lighting | 12V | 12/2, 14/2 landscape cable | Outdoor weatherproof applications |
| Intercoms / Doorbells | 12–24V | 18/2, 20/2 | Low current signaling devices |
| Access Control | 12V–24V | Shielded multi-conductor | For maglocks, keypads, relays |
🧪 Key Specifications of Low Voltage Conductors
To choose the right conductor, consider these technical parameters:
1. Conductor Material
Copper (most common due to conductivity)
Tinned copper (for corrosion resistance)
Aluminum (rare in LV, sometimes in power-limited applications)
2. Wire Gauge (AWG)
Lower AWG = thicker wire
Common LV gauges: 22, 20, 18, 16, 14, 12
| Application | Suggested AWG |
|---|---|
| Thermostats | 18 AWG |
| Security Systems | 22 AWG |
| Speakers | 16–12 AWG |
| Landscape Lighting | 12 AWG |
3. Stranded vs. Solid
Stranded: More flexible, ideal for installations with movement or bends
Solid: More rigid, used in walls or for punch-down terminals
4. Insulation Type
PVC: Most common; general indoor use
PE / XLPE: More rugged or outdoor-rated
Plenum-rated: Flame-retardant for use in air ducts
Direct burial: Weather and UV resistant
5. Shielding
Use shielded conductors for audio, access control, or areas with EMI
Unshielded is fine for basic power and low-interference signals
6. Certifications & Ratings
UL Listed / NEC compliant
Class 2 or Class 3 circuits
Fire rating: Plenum (CMP) or Riser (CMR)
RoHS, CSA, or CE for international use
🧰 How to Choose the Right Low Voltage Conductor
Ask the following questions:
What’s the voltage and current of the circuit?
Ensure wire gauge is sufficient for voltage drop and ampacity
Is it carrying power, signal, or both?
For data/signal, impedance and shielding may matter more
Is the installation indoors or outdoors?
Use UV- and water-resistant cable for outdoor work
Will it be in-wall, plenum, or conduit?
Match fire ratings and flexibility to the environment
Do you need a multi-conductor cable?
Useful for control circuits, audio zones, and automation
📦 Popular Types of Low Voltage Conductors
| Wire Type | Description | Application |
|---|---|---|
| 18/2 Solid Copper | Two conductors, general control signal wiring | Thermostats, doorbells |
| 22/4 Shielded | Four stranded conductors with shielding | Security, intercoms |
| Cat6 UTP/STP | High-speed data, with optional shielding | Networking, IP cameras |
| 16/2 Speaker Wire | Stranded, high strand count for audio performance | In-wall or ceiling audio |
| 12/2 Landscape Wire | Thick-gauge UV-rated cable for outdoor lights | Garden & landscape wiring |
🔒 Low Voltage Wiring Safety and Code
Even at lower voltages, proper handling is important:
NEC Article 725 governs Class 1, 2, and 3 circuits
Maintain separation from high voltage wiring (often 2-12 inches)
Don’t run low-voltage wire in the same conduit as high voltage
Use low-voltage-rated junction boxes and enclosures
Label conductors and document the wiring layout
❓ FAQs About Low Voltage Conductors
Q: Can I use regular electrical wire for low voltage?
A: Not recommended. Use purpose-built low voltage cables with proper insulation, gauge, and ratings.
Q: Is low voltage wiring dangerous?
A: While generally safer than line voltage, improper installation can still cause shorts, signal failure, or fire hazards.
Q: How far can I run low voltage wire?
A: Depends on voltage, load, and wire gauge. For example, a 12V LED system may need 12 AWG wire for runs over 50 feet.
Q: Do low voltage conductors require conduit?
A: Not always, but it may be required in certain codes or environments (e.g., plenum spaces or outdoors).
✅ Conclusion: Choosing the Right Low Voltage Conductor Matters
Low voltage conductors may not carry high power, but they’re critical to performance, signal integrity, and safety. Whether you’re wiring a smart home, connecting security devices, or powering LED lighting, choosing the right conductor saves time, prevents issues, and ensures code compliance.
🧵 Need Bulk Low Voltage Wire or Expert Help?
At TOT Wire & Cable, we manufacture and supply high-quality, cost-effective low voltage copper conductors—ideal for:
Security systems
Smart home installations
HVAC controls
Landscaping and more
📞 Contact us now for quotes, specs, or custom solutions.
