Commercial Low Voltage Systems Overview
Commercial buildings require sophisticated low voltage infrastructure to support business operations, safety systems, and building automation. Unlike residential applications, commercial installations must meet stricter codes, accommodate higher data demands, and integrate multiple building systems.

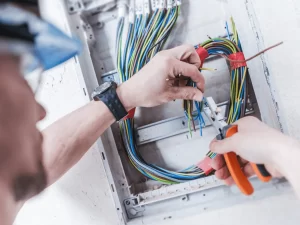

low voltage wiring in commercial buildings
Essential Commercial Low Voltage Systems
Structured Cabling Infrastructure
Horizontal Cabling: Cat6A is the current standard, supporting 10-gigabit speeds up to 100 meters Backbone Cabling: Fiber optic cables connect telecommunications rooms and main distribution areas Telecommunications Rooms: Required every 3,000 square feet with dedicated HVAC and power
Fire Alarm and Life Safety
Addressable Fire Alarm Systems: Digital communication between devices and control panels Mass Notification Systems: Emergency communication throughout the building Installation Requirements: NFPA 72 compliance with specific wire types and circuit supervision
Security and Access Control
IP Camera Systems: Cat6A cable supporting Power over Ethernet Plus (PoE+) Access Control: Dedicated low voltage runs for card readers, door strikes, and sensors Intrusion Detection: Supervised circuits with end-of-line resistors for tamper detection
Building Automation and Controls
HVAC Controls: BACnet, Modbus, or proprietary control networks Lighting Control Systems: DALI, DMX, or wireless control infrastructure
Energy Management: Smart metering and monitoring systems integration
Code Requirements and Standards
National Electrical Code (NEC) Article 725
Class 1 Circuits: Up to 30V, must follow power wiring methods Class 2 Circuits: Limited power circuits, relaxed installation requirements Class 3 Circuits: Higher power levels with specific safety requirements
Fire Rating Requirements
Plenum Spaces: CMP-rated cables required in air handling spaces Riser Applications: CMR-rated cables for vertical runs between floors General Purpose: CM-rated cables for standard commercial applications
Grounding and Bonding
Commercial installations require proper telecommunications grounding infrastructure per TIA-607-C standards, including:
- Telecommunications main grounding busbar (TMGB)
- Telecommunications grounding busbar (TGB) in each telecom room
- Bonding conductors sized per code requirements
Installation Planning and Design
Pathway Systems
Cable Tray: Open wire mesh or solid bottom trays for large cable quantities Conduit Systems: EMT or PVC conduit for protected cable runs Raised Floor: Integrated cable management in office environments Ceiling Distribution: J-hooks and cable support systems above drop ceilings
Telecommunications Room Design
Size telecommunications rooms at 0.75 square feet per 100 square feet of served area, with minimum 10x7 feet dimensions. Include:
- 3/4-inch plywood backboard on all walls
- Dedicated 20-amp electrical circuits
- HVAC maintaining 64-75°F temperature
- Adequate lighting and access for maintenance
Power over Ethernet Considerations
PoE+ delivers up to 30 watts per port, enabling:
- IP phones and wireless access points
- Security cameras with pan/tilt/zoom
- LED lighting systems
- Building sensors and controls
Commercial-Specific Installation Requirements
Workstation Outlets
Install minimum two Cat6A jacks per workstation, with additional outlets every 100 square feet in open office areas.
Conference Room Infrastructure
- Multiple HDMI and data connections at tables
- Wireless presentation system infrastructure
- Audio/video distribution to multiple displays
- Integrated control system wiring
Common Area Systems
Digital Signage: HDMI distribution and control networks Public Wi-Fi: High-density wireless access point infrastructure Background Music: 70-volt distributed audio systems
Testing and Certification
Cable Testing Requirements
All Category cable installations require certification testing per TIA-568 standards:
- Wiremap and continuity testing
- Length and propagation delay measurements
- Near-end and far-end crosstalk testing
- Return loss and insertion loss verification
Documentation Standards
Create comprehensive as-built drawings including:
- Cable schedules with port assignments
- Telecommunications room layouts
- Pathway and space utilization plans
- Test results and certification reports
Integration Challenges and Solutions
System Convergence
Modern commercial buildings integrate multiple systems on shared infrastructure:
- IP-based security cameras on data networks
- VoIP phone systems sharing network infrastructure
- Building automation systems using Ethernet protocols
Bandwidth Planning
Plan for 50% growth in bandwidth requirements over 5-year periods. Consider fiber to the desk for high-bandwidth applications.
Maintenance Access
Design pathways and telecommunications rooms for easy maintenance and future expansion. Avoid permanent obstacles that prevent cable additions.
Cost Considerations
Material Costs
Commercial-grade materials cost 20-40% more than residential equivalents due to fire ratings and performance requirements.
Labor Complexity
Commercial installations require certified technicians familiar with:
- Commercial building codes and standards
- Advanced testing and certification procedures
- Multi-trade coordination and scheduling
Ongoing Maintenance
Budget for regular testing, documentation updates, and system expansion as business needs change.
Emerging Technologies
Wi-Fi 6E Infrastructure
New wireless standards require increased PoE power delivery and higher-density cable installations.
Smart Building Integration
IoT sensors and devices require extensive low voltage infrastructure for monitoring and control systems.
Sustainability Requirements
Energy-efficient systems and green building certifications influence cable selection and installation methods.
Professional Requirements
Commercial low voltage installation typically requires:
- Licensed electrical contractors
- BICSI-certified technicians for structured cabling
- Factory-certified technicians for proprietary systems
- Coordination with multiple building trades
