The YJGCFPB Medium Voltage Tensile Flat Flexible Cable is designed for mobile power transmission systems that operate under continuous movement and high mechanical stress. With outstanding flexibility, tensile strength, and voltage endurance, this cable is widely used in reeling, cranes, trolleys, and transmission machinery across industries such as metallurgy, power, shipbuilding, logistics, and port operations.

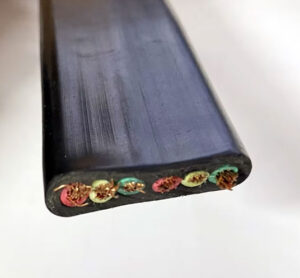

Medium Voltage Tensile Flat Flexible Cable (YJGCFPB)
Technical Specifications
| Parameter | Details |
|---|---|
| Model | YJGCFPB |
| Rated Voltage (kV) | 3.6/6, 6/10, 8.7/10, 8.7/15 |
| Conductor | Flexible stranded copper conductor |
| Insulation Material | Cross-linked polyethylene (XLPE) or equivalent medium-voltage insulating compound |
| Sheath Material | High-strength elastomer or nitrile-PVC composite for mechanical and weather resistance |
| Structure Type | Flat, tensile, flexible cable |
| Temperature Range | -40°C to +90°C (customizable upon request) |
| Bending Radius | ≥ 6 × cable thickness |
| Tensile Strength | Reinforced with tension-bearing elements for extended reeling operations |
| Flame Retardant Property | IEC 60332-1 compliant |
Structural Features
Copper Conductor:
Made from high-conductivity stranded copper for superior electrical performance and flexibility.Medium Voltage Insulation:
Uses XLPE or equivalent insulation to provide excellent dielectric strength, heat resistance, and mechanical toughness.Tensile Reinforcement:
Integrated tension-bearing components ensure reliable performance during frequent winding, unwinding, and long-distance movement.Flat Construction:
Optimized for use in cable reels and track systems, minimizing twisting and tangling during motion.Protective Sheath:
Outer sheath made of oil-resistant, abrasion-resistant, and weatherproof materials for harsh industrial environments.
Applications
The YJGCFPB medium voltage flat flexible cable is ideal for:
Reeling systems in cranes, hoists, and material handling machinery
Trolley and traveling power systems in industrial workshops
Mobile transmission machinery requiring frequent bending and retraction
Port, logistics, and shipyard applications
Metallurgy and power generation equipment
Its robust design makes it suitable for both indoor and outdoor dynamic installations.
Key Advantages
Supports medium voltage transmission (up to 15 kV)
Excellent tensile strength and mechanical durability
High flexibility and fatigue resistance for continuous movement
Superior heat, oil, and abrasion resistance
Designed for stable electrical performance under dynamic stress
Why Choose TOT Wire & Cable
At TOT Wire & Cable, we provide durable and high-performance flexible cables engineered for demanding industrial environments. Our YJGCFPB medium voltage flat flexible cables meet international standards, ensuring reliable power delivery, extended service life, and safe operation in motion-intensive systems.
