When your project demands significant current capacity and the flexibility to navigate complex pathways or withstand vibration, 6 gauge (AWG) stranded wire is a go-to heavy-duty conductor. Far thicker and more robust than common household wiring, its multi-strand construction is essential for its handling and performance. This guide will provide an in-depth look at the characteristics, typical ampacity, indispensable applications, and critical installation considerations for 6 AWG stranded wire. For foundational knowledge on why stranded wire is preferred for flexibility, refer to our Stranded vs. Solid Wire: Your Ultimate Guide to Choosing the Perfect Electrical Conductor.

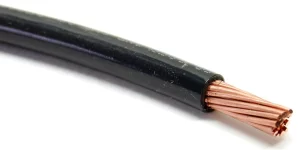

6 gauge stranded wire
Understanding 6 Gauge Stranded Wire
6 AWG is a substantial conductor, commonly found in applications requiring high current delivery. A solid 6 AWG wire would be extremely rigid and nearly impossible to bend without specialized tools or risking damage. The power of 6 gauge stranded wire comes from its composition: numerous individual fine copper (or sometimes aluminum, especially for longer runs where weight is a factor) strands twisted together.
Why Stranded for This Gauge? For a wire this thick, flexibility isn't just a convenience; it's a necessity. The stranded construction provides:
- Essential Flexibility: Despite its large size, 6 AWG stranded wire can be bent and routed around corners, through conduits, and within enclosures far more easily than its solid counterpart. This is critical for practical installation.
- Superior Vibration Resistance: In applications like automotive, marine, or industrial machinery, where constant vibration or movement is present, stranded wire is highly resistant to fatigue and breaking.
- Improved Handling: Its pliability makes it safer and less labor-intensive to work with during installation.
Common Materials & Insulation: 6 gauge stranded wire is most commonly made from annealed bare copper for maximum conductivity. For applications requiring corrosion resistance, tinned copper is used (e.g., marine). Insulation types are robust to match the wire's high current capacity and often include:
- THHN/THWN: Frequently used in building wiring in conduit, offering heat, moisture, and oil resistance.
- XLPE: Cross-linked polyethylene, known for excellent insulation properties and durability, especially in higher temperature environments.
- PVC: General purpose, often used for flexible power cords.
- Battery Cable Insulation: Specialized, often extra-thick PVC or rubber, designed for the harsh environments and high currents of battery connections in vehicles or RVs.
6 Gauge Stranded Wire Ampacity (Current Carrying Capacity)
Ampacity for 6 AWG stranded wire is significantly higher than smaller gauges, reflecting its heavy-duty applications:
- 55 Amps at 60°C (140°F) insulation rating
- 65 Amps at 75°C (167°F) insulation rating
- 75 Amps at 90°C (194°F) insulation rating
Crucial Caveats: These values are general guidelines. Always remember that actual safe ampacity depends heavily on:
- Insulation type: Higher temperature-rated insulation allows for higher ampacity.
- Number of current-carrying conductors in a conduit or bundle: More wires mean less heat dissipation, requiring derating.
- Ambient temperature: Hotter environments necessitate reducing the maximum current.
- Installation method: Free air vs. conduit vs. direct burial.
- Local electrical codes: The National Electrical Code (NEC) or your local equivalent is the definitive source for safe ampacity and installation practices.
For a comprehensive explanation of ampacity and its influencing factors, refer to our Understanding Wire Gauge (AWG) and Ampacity: A Complete Guide.
Key Applications of 6 Gauge Stranded Wire
The substantial current capacity coupled with the essential flexibility makes 6 AWG stranded wire vital for many high-power applications:
- Main Feeder for Subpanels: Connecting a main service panel to a subpanel in larger residential homes, workshops, or commercial spaces that draw significant power.
- Large Appliance Circuits: Essential for dedicated circuits for high-power electric ranges, large central air conditioning units, or other appliances requiring 50-70 amp circuits.
- Service Entrance Cable (Smaller Residential): For some smaller residential homes, 6 AWG can be used as part of the service entrance conductors, though larger homes require bigger gauges.
- Heavy-Duty Battery Cables: Widely used in automotive, marine, RV, and golf cart applications for connecting batteries to starters, inverters, or main power distribution, where flexibility and vibration resistance are critical.
- Welding Cables: For specific welding current ranges that demand extreme flexibility and robust current carrying capabilities.
- Solar Power Systems: As main power runs connecting solar inverters to batteries or main service panels in larger solar installations.
- Industrial Equipment Wiring: For heavy machinery, motors, and high-power control panels where both current and durability in movement are needed.
Installation Considerations for 6 Gauge Stranded Wire
Working with 6 AWG stranded wire, while flexible, still requires robust tools and precise techniques:
- Ease of Routing: Its stranded nature significantly simplifies pulling this thick wire through conduit and navigating corners, a task that would be extremely difficult with solid 6 AWG.
- Specialized Tools: You'll need heavy-duty wire strippers capable of cleanly removing insulation from this gauge without damaging strands.
- Robust Termination: Ensuring a secure and low-resistance connection is paramount for such high current.
- Lugs/Terminals: Use crimp lugs or bolt-on terminals specifically designed for 6 AWG wire. These are typically heavy-duty copper or brass.
- Hydraulic or Ratcheting Crimpers: For secure connections, a standard plier-style crimper won't suffice. You'll need a specialized hydraulic or heavy-duty ratcheting crimper to properly compress the lug onto the wire.
- Heat Shrink Tubing: Often used over crimped connections to provide insulation, strain relief, and environmental protection.
- Ferrules: For screw-down terminal blocks where individual strands must be consolidated, large ferrules are critical for preventing stray strands and ensuring a reliable contact.
Our Essential Wire Termination Techniques for Every Project provides more in-depth guidance on proper termination for heavy-gauge wires.
Where to Buy 6 Gauge Stranded Wire
6 gauge stranded wire is available at electrical supply houses, specialized automotive and marine stores, and online retailers that cater to industrial or heavy-duty electrical needs. Ensure the wire's insulation type and specifications (e.g., UL listed, marine-grade) match your application.
Safety Reminders
Due to the high currents involved, safety with 6 AWG wire is non-negotiable:
- Always match the wire's ampacity to the circuit breaker/fuse rating. Never undersize the wire for the load.
- Strictly adhere to the National Electrical Code (NEC) or your local electrical regulations. These codes dictate wire sizing, installation methods, and overcurrent protection requirements.
- Verify the insulation is rated for the environment, including temperature, moisture, and potential exposure to chemicals or abrasion.
- For any high-voltage or complex electrical work, always consult or hire a qualified and licensed electrician.
Conclusion
6 gauge stranded wire is a powerhouse conductor, bridging the critical gap between demanding current loads and the absolute necessity of flexibility. Whether you're running power to a new subpanel, wiring a robust battery bank for your RV, or enabling heavy industrial machinery, understanding its robust characteristics and precise installation methods ensures a safe, efficient, and exceptionally reliable electrical backbone for your most critical projects.
