Introduction
High voltage power lines are a critical part of our electrical grid. They transport electricity over long distances, from power plants to substations, before the electricity is distributed to homes, businesses, and industries. But what exactly is considered 'high voltage,' and how do these power lines work?
In this guide, we’ll explain what high voltage power lines are, their typical voltage ranges, how they differ from regular distribution lines, and why they are essential for modern power systems.

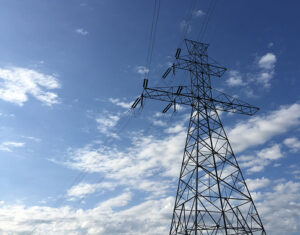

what is a high voltage power line
1. Definition of a High Voltage Power Line
A high voltage power line is an overhead or underground conductor system designed to carry electrical power at voltages above 1,000 volts (1 kV). These lines are usually part of transmission networks, which deliver electricity from generation facilities to substations over long distances.
Voltage Categories
Low Voltage (LV): Up to 1 kV (used in homes and small businesses).
Medium Voltage (MV): 1 kV to 69 kV (used in local distribution networks).
High Voltage (HV): 69 kV to 230 kV (used in regional transmission).
Extra-High Voltage (EHV): 230 kV to 765 kV (used for cross-country transmission).
Ultra-High Voltage (UHV): Above 765 kV.
2. Purpose of High Voltage Power Lines
High voltage lines minimize energy loss during long-distance transmission. When electricity is transmitted at a high voltage, current flow is reduced, which decreases heat loss in the wires (I²R losses).
Key roles include:
Efficiently delivering large amounts of power over long distances.
Connecting power plants to distribution substations.
Supporting the stability of national and regional power grids.
3. Structure of a High Voltage Power Line
A typical high voltage power line system includes:
Conductors: Usually made of aluminum (sometimes reinforced with steel).
Insulators: Prevent electricity from flowing into the support towers.
Towers or Poles: Steel lattice towers or concrete poles that keep the lines elevated.
Ground Wire: Protects the line from lightning strikes.
4. High Voltage vs. Regular Power Lines
| Feature | High Voltage Line | Regular Distribution Line |
|---|---|---|
| Voltage Range | 69 kV – 765 kV | 120 V – 25 kV |
| Purpose | Long-distance transmission | Local distribution to homes |
| Height & Size | Taller towers and thicker conductors | Smaller poles and cables |
| Insulation | Air-insulated or minimal | Insulated for safety |
5. Are High Voltage Power Lines Dangerous?
Yes, high voltage power lines carry significant risk if approached too closely. Safety measures include:
Maintaining a safe distance when working near power lines.
Never touching or climbing transmission towers.
Observing clearance rules for construction equipment.
6. Common FAQs
Q1: What voltage is considered “high voltage” for power lines?
Typically, any line above 69 kV is classified as high voltage.
Q2: Why are power lines not insulated like household wiring?
The air acts as an insulator for overhead high voltage lines, and insulating them would be costly and impractical.
Q3: How far should you stay from high voltage lines?
OSHA recommends keeping at least 10 feet (3 meters) away from overhead lines up to 50 kV, with additional distance for higher voltages.
Conclusion
High voltage power lines are the backbone of electricity transmission, enabling efficient delivery of power from generation sites to communities worldwide. Understanding how they work can help you stay safe and appreciate their importance in modern infrastructure.
