What Is a SATA Power Cable? Full Guide + Tips for SSDs, Splitters, and PC Builds

When building or upgrading a computer, one term you’ll constantly run into is the SATA power cable. But what exactly is it? How does it differ from a SATA data cable? And what happens when you need extra connectors or convert between different formats?

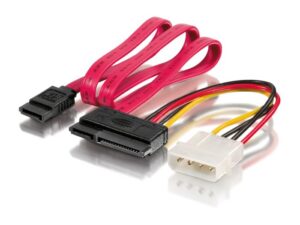

sata power cable

In this guide, we’ll break down everything you need to know about SATA power cables—including types, uses, pinouts, and even SATA to Molex Y-cables and power extension solutions for advanced PC setups.

🔌 What Is a SATA Power Cable?

A SATA power cable is used to deliver power from your computer's power supply unit (PSU) to devices like SSDs, HDDs, and optical drives that use the Serial ATA (SATA) standard.

Unlike the SATA data cable, which only transfers information between the motherboard and the drive, the SATA power cable provides electricity to operate the device.

🧩 Key Differences: SATA Cable and Power Cable

There are two separate SATA cables:

• SATA Data Cable: A thin 7-pin cable connecting the drive to the motherboard

• SATA Power Cable: A wider 15-pin cable that connects the drive to the power supply

Many users confuse the two or ask: “Do SATA cables provide power?”
👉 The answer is no—only the SATA power cable provides power, not the data cable.

🧠 SATA Power Cable Pinout (15-Pin Breakdown)

Not every device uses all three voltages. For example, most SSDs only need the 5V rail, which is why many SATA power cables for SSDs don’t include 3.3V wiring.

🔀 Popular Variants & Accessories

To handle modern setups, a variety of SATA cable power options are available:

✅ SATA Power Splitter Cable (Y-Cable)

Need to power two drives from a single PSU plug? A SATA power Y cable splits one connector into two, useful when your PSU has limited outputs.

• Example: Connect one SATA molex power Y-cable to power two 2.5” SSDs.

• Often used in compact builds or when expanding storage.

✅ SATA Power Cable Extension

A SATA power extender cable increases the length between your PSU and drive—ideal for large cases or tricky cable routing. Also called power SATA extension cable or SATA and power extension cable.

✅ Molex to SATA Power Cable

Still using an older PSU with 4-pin Molex outputs? Use a 4-pin Molex to SATA power cable adapter to convert it into a modern SATA power line.

✅ 6-Pin to SATA Power Cable

Useful for graphics-card-style power connectors. A 6 pin SATA power cable adapter converts PCIe power into SATA.

✅ SATA Power to 8-Pin Adapter

Rare but helpful: lets you convert from a SATA power cable to 8-pin EPS connector, often used in small form factor or budget builds where PSU compatibility is limited.

💡 Innovative Use Cases (That Most People Don’t Know)

1. Powering LED strips or external fans: Many accessories can draw power through modified SATA cables.

2. SATA power to motherboard?
   While generally not recommended, some DIY setups repurpose SATA power to run low-power ITX motherboards via adapters—use with caution and proper knowledge.

3. Multiple SSD hot-swaps: With splitter + extension combos, you can create a low-cost hot-swap SSD rack using SATA power splitter cables.

🛠️ Troubleshooting SATA Power Issues

• Loose fit? Try a locking SATA power cable version to prevent disconnects.

• Drive not spinning? Ensure you’re using the correct rail (especially with Molex to SATA).

• Cable too short? Use a SATA power extender cable—don’t force tight bends!

🧰 Which SATA Power Cable Do You Need?

📦 Conclusion

Whether you’re building a gaming rig, upgrading a server, or just adding another SSD, understanding and choosing the right SATA power cable ensures a smooth, safe, and efficient build. From SATA cable power splitters to SATA to Molex Y-cables, TOT Wire & Cable has the right solution for your setup.

Need bulk SATA power cables or custom lengths?
👉 Contact us now for pricing, technical specs, or advice on PC power wiring.
