If you're working in power distribution, industrial infrastructure, or utility projects, you've probably come across the term MV cable. But what exactly is an MV cable, and where is it used?

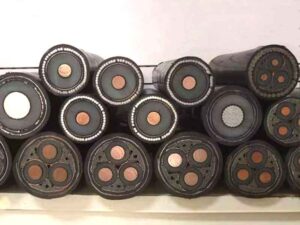

what is mv cable
This article explains the definition, structure, voltage range, and applications of medium voltage cables in a simple yet technical way.
🔍 Definition: What Is MV Cable?
MV cable stands for Medium Voltage cable, which refers to power cables designed to carry voltages between 1 kV (1,000 volts) and 35 kV. These cables are commonly used to transmit electrical energy from substations to transformers or large machinery in industrial and commercial settings.
⚡ MV Cable Voltage Range
While definitions can vary slightly depending on standards (IEC, IEEE, etc.), MV cables generally fall within:
IEC definition: 1 kV to 35 kV
IEEE/NEMA definition: 2.4 kV to 35 kV
MV cables fill the gap between Low Voltage (LV) cables (below 1 kV) and High Voltage (HV) cables (above 35 kV).
🧱 Construction of MV Cables
Medium voltage cables are more complex than low voltage cables due to their insulation and shielding requirements. A typical MV cable includes:
| Component | Description |
|---|---|
| Conductor | Copper or aluminum, stranded |
| Conductor Shield | Semi-conductive layer to smooth electric field |
| Insulation | XLPE (cross-linked polyethylene), EPR, or TR-XLPE |
| Insulation Shield | Semi-conductive layer plus metallic tape or wires |
| Armor (optional) | Steel wire armor (SWA) or tape for mechanical protection |
| Outer Sheath | PVC, LSZH, or HDPE for weather and chemical resistance |
✅ Key Features of MV Cables
⚡ Reliable voltage transmission up to 35 kV
🔥 Fire resistance options available
🛡 Excellent electrical insulation and shielding
🌧 Weatherproof and UV resistant for outdoor use
🧯 Low smoke and halogen-free options for indoor installations
🛠 Common Applications of MV Cable
MV cables are widely used in:
Electrical substations and switchgear
Underground utility networks
Renewable energy projects (e.g., wind and solar farms)
Oil & gas refineries
Mining and heavy industry
Airports and rail infrastructure
Large commercial and residential buildings
Data centers and hospitals
They are suitable for both underground and overhead installations, depending on the design.
🆚 MV Cable vs LV Cable vs HV Cable
| Category | Voltage Range | Common Use |
|---|---|---|
| LV (Low Voltage) | Up to 1 kV | Residential & small loads |
| MV (Medium Voltage) | 1 kV – 35 kV | Industrial & utility power |
| HV (High Voltage) | Above 35 kV | Long-distance transmission |
💡 MV cables are essential for safe and efficient power distribution in modern infrastructure.
📦 Summary
MV cables (Medium Voltage cables) are critical for transmitting power over medium distances, especially in industrial, utility, and commercial applications. With superior insulation and shielding, they ensure safe, stable, and long-lasting performance even in demanding environments.
