When it comes to long-distance, noise-resistant, multi-device communication, few protocols are as widely used as RS-485. But what exactly is an RS-485 cable, and why is it essential for industrial and data communication systems?

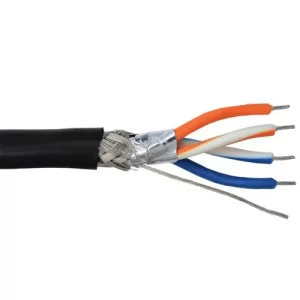

what is rs 485 cable
This article explains the purpose, design, and typical uses of RS-485 cables in simple terms—perfect for engineers, installers, and system designers.
🔍 What Is RS-485?
RS-485 (also known as TIA/EIA-485) is a standard for serial data communication using differential signaling. It enables multi-point communication over a single pair (or two pairs) of wires, often over long distances and in electrically noisy environments.
📦 What Is RS-485 Cable?
An RS-485 cable is a specially designed twisted-pair shielded cable optimized for RS-485 signal transmission. These cables help maintain signal integrity and noise immunity in data systems that use the RS-485 protocol.
🧱 RS-485 Cable Construction
A typical RS-485 cable includes:
| Component | Description |
|---|---|
| Conductors | 22–24 AWG copper, solid or stranded |
| Twisted Pairs | One or two pairs to support full- or half-duplex signaling |
| Shielding | Foil or braid shield to prevent EMI (electromagnetic interference) |
| Insulation | PVC, PE, or LSZH |
| Jacket | UV- and oil-resistant for harsh environments |
✅ Key Features of RS-485 Cable
🔹 Supports long-distance communication (up to 1,200 meters or 4,000 feet)
🔹 Differential signaling reduces noise and interference
🔹 Allows up to 32 devices on the same bus
🔹 Flexible and durable construction for industrial settings
🔹 Shielded designs protect against EMI in factories, buildings, and outdoors
🛠 Common Applications of RS-485 Cable
RS-485 cables are widely used in:
Industrial automation (PLC, SCADA systems)
Building management systems (BMS)
Modbus RTU communication
CCTV and security systems
HVAC control and monitoring
Smart metering and energy monitoring
RS-485-based sensors and actuators
Data acquisition systems
⚖️ RS-485 vs RS-232 vs Ethernet Cable
| Feature | RS-485 | RS-232 | Ethernet (Cat5e/6) |
|---|---|---|---|
| Max Distance | Up to 1,200 m | ~15 m | 100 m (standard) |
| Noise Resistance | High (differential) | Low | Medium (twisted pair) |
| Devices Supported | Up to 32 | Point-to-point | 2–100+ (networked) |
| Protocol Type | Serial (bus) | Serial (single) | Network (packet) |
💡 RS-485 is ideal for industrial systems that require simple, low-cost, reliable, long-distance communication.
🔧 Choosing the Right RS-485 Cable
When selecting an RS-485 cable, consider:
✅ Number of pairs: One pair (half-duplex) or two pairs (full-duplex)
✅ Shielding: Foil/braid for EMI protection
✅ Wire gauge: 22–24 AWG for lower voltage drop
✅ Jacket material: For indoor, outdoor, or underground use
✅ Plenum rating: If required for commercial buildings
📌 Summary
An RS-485 cable is a shielded twisted-pair cable specifically engineered for robust, long-distance, noise-resistant communication in industrial and commercial environments. It’s an essential backbone for Modbus, BACnet, and other RS-485-based systems.
