tinned copper wire
Tinned copper wire is copper wire coated with a thin layer of tin to prevent corrosion and extend its lifespan. This protective coating gives the wire a distinctive silvery-gray appearance, even though pure copper underneath remains copper-colored. If you've ever wondered why oxygen-free copper wire looks silver instead of orange, tinning is the answer.
In this guide, we'll explain why tinning matters, how it's done, and when you should choose tinned copper wire for your projects.
Why Is Copper Wire Tinned?
Copper is the second-best conductor of electricity (after silver) and costs only about $2 per kilo—making it the go-to choice for most wiring applications. However, copper has one major weakness: it oxidizes when exposed to air and moisture, which degrades conductivity and causes connection failures.
Tinning solves this problem by creating a protective barrier between the copper and the environment. The tin coating:
- Prevents rust and oxidation
- Keeps stranded wire neatly bundled for cleaner connections
- Eliminates loose strands that could cause short circuits
- Protects against saltwater and chemical damage
Benefits of Tinned Copper Wire
| Benefit | Explanation |
|---|---|
| Corrosion resistance | Tin creates a barrier against oxygen, moisture, and salt—ideal for marine and outdoor use |
| Improved solderability | Tin helps solder flow smoothly for stronger, more reliable connections |
| Extended lifespan | Protected wire lasts significantly longer in harsh environments |
| Maintains conductivity | The thin tin layer doesn't noticeably affect copper's electrical performance |
| Flexible and strong | Works well in stranded wire for high-flex applications |
How Is Tinned Copper Wire Made?
The manufacturing process involves several steps:
- Wire drawing: Conductive metal is pulled through progressively smaller circular dies until it reaches the desired diameter.
- Tinning: The wire receives its protective tin coating through one of two methods:
- Hot-dipping: Wire is dipped into molten tin
- Electroplating: Tin is electrochemically bonded to the copper surface
- Insulation: Finally, the tinned wire is coated with insulation material like PVC or nylon.
Even individual strands in stranded wire get tinned—ensuring complete protection throughout the conductor.

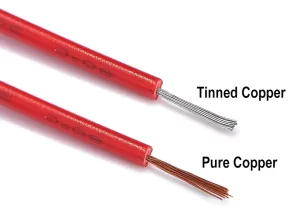

Tinned vs Bare Copper Wire
| Feature | Tinned Copper | Bare Copper |
|---|---|---|
| Corrosion resistance | Excellent | Low |
| Solderability | Easy, solder flows smoothly | Requires more preparation |
| Cost | Slightly higher | Lower |
| Appearance | Silvery-gray | Orange/copper color |
| Best applications | Marine, solar, outdoor, automotive | Indoor, dry locations |
Important: You might think scraping off the tin coating for bare copper-to-copper contact would create better conductivity. In reality, this often accelerates corrosion—especially in salt spray or automotive environments where galvanic activity between different metals and salt water can quickly degrade unprotected connections.
What Is Tinned Copper Wire Used For?
Tinned copper wire is essential wherever durability and reliable conductivity matter:
- Marine wiring: Protects against saltwater corrosion
- Solar and outdoor systems: Withstands UV exposure and weathering
- Automotive and RV wiring: Handles temperature extremes and moisture
- Electrical panels: Easier to solder and terminate
- Aerospace and industrial controls: Meets demanding reliability standards
- Car audio installations: Resists the challenging conditions inside vehicles
Why Copper Beats Other Metals
To understand why tinned copper is the industry standard, consider how it compares to alternatives:
| Metal | Conductivity Rank | Price (per kg) | Drawbacks |
|---|---|---|---|
| Silver | #1 (best) | ~$700 | Expensive, tarnishes quickly |
| Copper | #2 | ~$2 | Oxidizes without protection |
| Gold | #3 | ~$58,000 | Too expensive for wire (used for contacts only) |
| Aluminum | #4 | ~$3 | Lower capacity, problematic with copper/brass terminals |
Copper wins on the balance of conductivity and cost. Adding tin coating eliminates copper's main weakness—oxidation—making tinned copper the optimal choice for most applications.
A Note on Aluminum and CCA Wire
Aluminum wire and copper-clad aluminum (CCA) are sometimes used to reduce costs, but come with significant limitations:
- Cannot carry as much current as equivalent copper wire
- Creates heat issues when used with copper, brass, or steel terminals
- Aluminum corrosion is hard to detect (no color change like copper's green or iron's red)
- Overloaded aluminum wiring is a common hazard in housing and mobile electronics
Best Practices for Tinned Wire Connections
Leave the Tinning Intact
Since most quality wires and terminals are already tin-coated, the best approach is to keep the protective coating intact when making connections. This provides continuous protection against corrosion.
Solder for Extra Protection
After crimping a ring connector, spade connector, or ferrule onto a wire end, apply a light solder coating for added strength and protection. Remember:
- Use minimal solder—too much compromises conductivity
- Solder acts as a protective coating and adhesive, not a conductivity enhancer
- A thin coat seals the connection against moisture and air
Protect the Connection Point
Corrosion at connection points increases resistance and can generate enough heat to melt wires and fittings. Keep water and oxygen away from connections using appropriate enclosures or coatings.
Conclusion
Tinned copper wire delivers the excellent conductivity of copper with the corrosion resistance of tin—making it the smart choice for demanding environments. Whether you're working on marine installations, automotive audio systems, solar setups, or outdoor projects, tinned copper provides the durability and reliability you need.
The silvery-gray coating might look different from what you expect copper wire to look like, but that thin layer of tin is what keeps your connections working for years to come.
