Recently, a user shared on Facebook that a newly purchased copper wire had turned black within just 3 months. They also referenced a technical analysis article from Prysmian. At first glance, the issue may seem like a simple discoloration—but upon deeper inspection, it's a complex intersection of material science, manufacturing practices, chemical reactions, and safety concerns.
New Copper Wire Turn Black in Just 3 Months
This article takes you through the causes, implications, and prevention strategies for copper conductor blackening, covering chemical, material, process, and environmental perspectives.
Part 1: The Chemical Mechanisms Behind Copper Blackening
Normal Oxidation: A Gradual and Protective Process
Copper is a highly reactive metal. When exposed to oxygen, moisture, and environmental pollutants, it forms a thin layer of copper oxide (CuO), which appears dull or dark brown. This oxidation process is gradual and generally harmless—it even acts as a natural protective barrier.

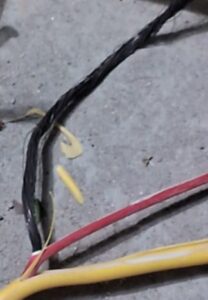

blackened electrical wires
Abnormal Blackening: Aggressive Chemical Reactions
If the copper turns significantly black in just a few months, it's no longer a case of natural oxidation. The likely culprits are reactions with sulfur, chlorine, or phosphorous compounds:
Sulfurization Reaction:
Cu + S → Cu₂S or CuS
These black copper sulfide compounds are the most common reason for rapid darkening.Chlorination Reaction:
Cu + HCl → CuCl₂
Forms highly corrosive black copper chlorides.
Such compounds can arise from contaminants in the insulation material or environmental pollutants.
Part 2: Quality Issues That Cause Blackened Copper

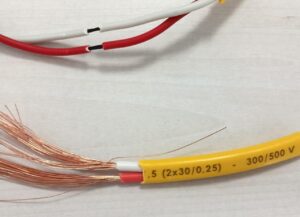

copper wire turned black
Cause #1: Defective Insulation Materials
Your friend’s suspicion may be valid—some PVC insulations or plasticizers release acidic or sulfur-containing volatiles. These compounds, especially organophosphates or chlorinated materials, can react at the copper-insulation boundary and trigger blackening.
Cause #2: Poor Wire Drawing and Annealing Processes
Wire Drawing Oil Residue:
If not properly cleaned, drawing lubricants containing phosphorus can remain on the copper and accelerate corrosion.Inadequate Annealing:
Improper heat treatment results in surface roughness and micro-cracks, allowing more reactive substances to infiltrate and corrode the conductor.
Cause #3: Harsh Storage or Operating Environment
High Humidity:
Moisture accelerates all forms of corrosion.Airborne Chemicals:
In areas near chemical plants or heavy industrial activity, hydrogen sulfide (H₂S) and other corrosive gases can permeate the cable insulation and reach the conductor.
Part 3: Safety Hazards of Blackened Copper Wire
copper wire turned black
1. Increased Electrical Resistance and Heat Generation
Blackened copper often contains semi-conductive layers of corrosion products, increasing resistance. Under high current loads, this leads to excess heat, accelerating insulation aging and posing a fire risk.
2. Poor Terminal Connections
The oxidized layer on blackened copper becomes brittle and difficult to bond.
Connections become unstable, prone to arcing, disconnection, or even complete failure.
3. Breakdown of Insulation Material
Corrosive compounds such as HCl can chemically attack PVC insulation, leading to:
Dielectric breakdown
Loss of insulation integrity
Risk of short circuits and electric shock
Part 4: Prevention and Recommendations

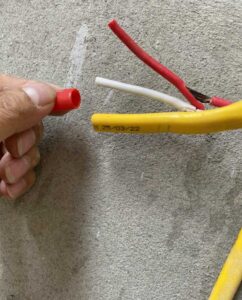

copper-wire-black
For Manufacturers:
Use high-purity, phosphorus-free plasticizers and insulations.
Implement thorough post-drawing cleaning processes to remove lubricant residues.
Perform adequate annealing to ensure smooth conductor surfaces and stable grain structure.
For End Users:
Visually inspect copper core color regularly—bright or light golden is healthy; blackening should raise red flags.
Store wires in dry, ventilated environments.
If you notice any copper discoloration, stop using the cable and contact your supplier immediately.
Conclusion: 'The Color of Copper Reflects the Health of Your Wire'
A high-quality copper wire should shine with a bright, metallic gold appearance. Significant blackening isn't merely an aesthetic issue—it’s a visible indicator of chemical degradation that could compromise safety and performance.
Whether you're a contractor, engineer, or end user, paying attention to copper discoloration can help you avoid hidden risks, reduce rework, and ensure the long-term reliability of your electrical systems.
