4-4 Whippet Aluminum Conductor Duplex Overhead Service Drop Cable Application
4-4 Whippet Aluminum Duplex Overhead Service Drop Cable is designed for use to supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volts or lower at a conductor temperature of 75°C maximum.
Also Known As:
4-4 whippet aluminium overhead cables, 4 whippet overhead aluminum wire, 4 whippet two conductor cable, 4 whippet 2 conductor power cable, 4 whippet two conductor, 4 whippet aluminum drop, 4 whippet overhead service drop conductors, 4 whippet overhead service conductors.
4-4 Whippet Aluminum Conductor Duplex Overhead Service Drop Cable Standard
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600Volts
4-4 Whippet Aluminum Conductor Duplex Overhead Service Drop Cable Construction

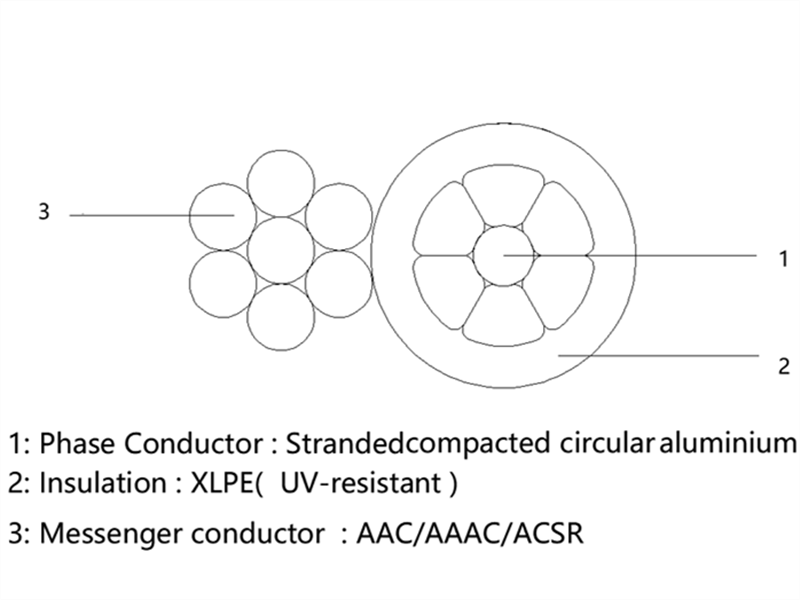

Duplex Overhead Service Drop Cable Wire Construction
| Phase Conductor | Strand or Compressed 1350-H19 Series Aluminum Conductor. |
| Neutral(Messenger )Conductor | Bare Aluminum Alloy 6201 messenger. . |
| Insulation | Black Cross Linked Polyethylene (XLP) Insulation. |
4-4 Whippet Aluminum Conductor Duplex Overhead Service Drop Cable Technical Data
| Rated voltage | kV | 0.6/1 |
| Test voltage | Veff kV/Hz | 4/50 |
| Laying temperature | °C | min. -5 |
| Operating temperature | °C | -30 ~ +90 |
| Conductor temperature | °C | max. +90 |
| Short-circuit temperature | °C/s | max. +250 /5 |
| Bending radius (min.) | mm | 20 × Ø of cable |
