4-4-4-4 Hackney Aluminum Conductor Quadruplex Overhead Service Drop Cable

The 4-4-4-4 Hackney Aluminum Conductor Quadruplex Overhead Service Drop Cable is designed for overhead electrical service connections. This cable features four aluminum conductors, each with a 4 AWG size, arranged in a quadruplex configuration. Typically, it includes two insulated phase conductors, one insulated neutral conductor, and a bare or insulated ground wire. Built for outdoor overhead installation, it offers durability, weather resistance, and efficient electrical conductivity. This type of cable is commonly used for residential and commercial service drops, providing a reliable and safe connection from utility poles to buildings. The Hackney brand is known for quality and adherence to electrical standards, ensuring long-lasting performance in overhead service applications.

  1. Home
  2. Overhead Service Drop Cable
  3. Quadruplex Overhead Service Drop Cable
  4. 4-4-4-4 Hackney Aluminum Conductor Quadruplex Overhead Service Drop Cable
  • slide

4-4-4-4 Hackney Aluminum Conductor Quadruplex Overhead Service Drop Cable

Overhead Neutral-supported Multiplex Conductor:Hackney

  • Code Word Hackney
  • Size AWG (Phase Conductors) 4
  • Voltage 600V
  • Number of cores 3+1 cores
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

4-4-4-4 Hackney Aluminum Conductor Quadruplex Overhead Service Drop Cable Application

4-4-4-4 hackneyaluminum conductor quadruplex overhead service drop cable used to supply 3-phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-tophase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors

Also Known As:
4-4-4-4 hackney aluminum quadruplex, 4-4-4-4 hackney overhead service drop, 4-4-4-4 hackney three phase cable, 4-4-4-4 hackney 3 phase cable, 4-4-4-4 hackney 3 phase power cable, 4-4-4-4 hackney 3 phase extension cord, 4-4-4-4 hackney 3 phase aluminum cable, 4-4-4-4 hackney 3 phase electrical cable, 4-4-4-4 hackney three phase power cable, 4-4-4-4 hackney quadruplex wire, 4-4-4-4 hackney quadruplex overhead wire, 4-4-4-4 hackney overhead service entrance cable.

4-4-4-4 Hackney Aluminum Conductor Quadruplex Overhead Service Drop Cable Standard

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
• ICEA S-76-474-Neutral-supported Power Cable Assemblies With Weather-Resistant Extruded Insulation Rated 600Volts

4-4-4-4 Hackney Aluminum Conductor Quadruplex Overhead Service Drop Cable Construction

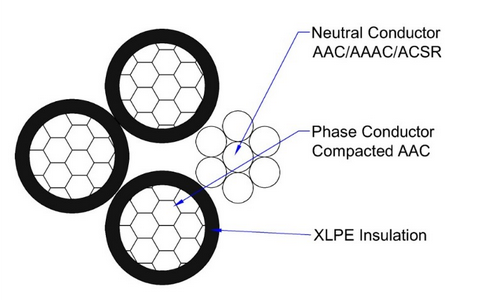

Quadruplex Overhead Service Drop Cable Construction

Quadruplex Overhead Service Drop Cable Construction

Phase Conductor Strand or Compressed 1350-H19 Series Aluminum Conductor.
Neutral(Messenger)Conductor Bare ACSR messenger. Optional constructions include a messenger of AAC or 6201 alloy.
Insulation Black Cross Linked Polyethylene (XLP) Insulation.

4-4-4-4 Hackney Aluminum Conductor Quadruplex Overhead Service Drop Cable Technical Data

Rated voltage kV 0.6/1
Test voltage Veff kV/Hz 4/50
Laying temperature °C min. -5
Operating temperature °C -30 ~ +90
Conductor temperature °C max. +90
Short-circuit temperature °C/s max. +250 /5
Bending radius (min.) mm 20 × Ø of cable
4-4-4-4 Hackney Aluminum Conductor Quadruplex Overhead Service Drop Cable Parameter

Size AWG: 4

Stranding: 7/w

Insulation Thickness (mils): 0.045

Neutral Size AWG: 4

Weight lbs./1000ft: XLP: 241

Weight lbs./1000ft: Poly: 226

Ampacity: XLP: 100

Ampacity: Poly: 80
