6-6-6 Hippa Aluminum Conductor Triplex Overhead Service Drop Cable Wire Application
6-6-6 Hippa Triplex aluminum wire has three conductors, with one of them being for neutral path, and two electrodes. Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
6-6-6 Hippa Aluminum Conductor Triplex Overhead Service Drop Cable Wire Standard
ASTM B-230 Aluminum Wire 1350-H19 for Electrical Purposes.
ASTM B-231 Aluminum Conductors, Concentric-Lay-Stranded
ASTM B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
ASTM B-309 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
ASTM B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Triplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA body S-76-474.
6-6-6 Hippa Aluminum Conductor Triplex Overhead Service Drop Cable Wire Construction

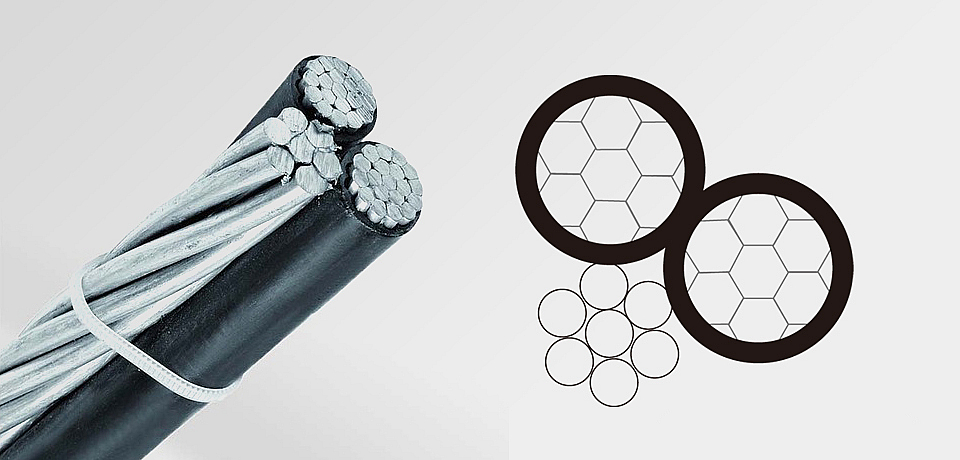

Triplex Overhead Service Drop Cable Wire Construction
| Phase Conductor | Strand or Compressed 1350-H19 Series Aluminum Conductor. |
| Neutral(Messenger)Conductor | Bare AAAC messenger. |
| Insulation | Black Cross Linked Polyethylene (XLP) Insulation. |
6-6-6 Hippa Aluminum Conductor Triplex Overhead Service Drop Cable Wire Technical Data
| Rated voltage | V | 600 |
| Test voltage | Veff kV/Hz | 4/50 |
| Laying temperature | °C | min. -5 |
| Operating temperature | °C | -30 ~ +90 |
| Conductor temperature | °C | max. +90 |
| Short-circuit temperature | °C/s | max. +250 /5 |
| Bending radius (min.) | mm | 20 × Ø of cable |
