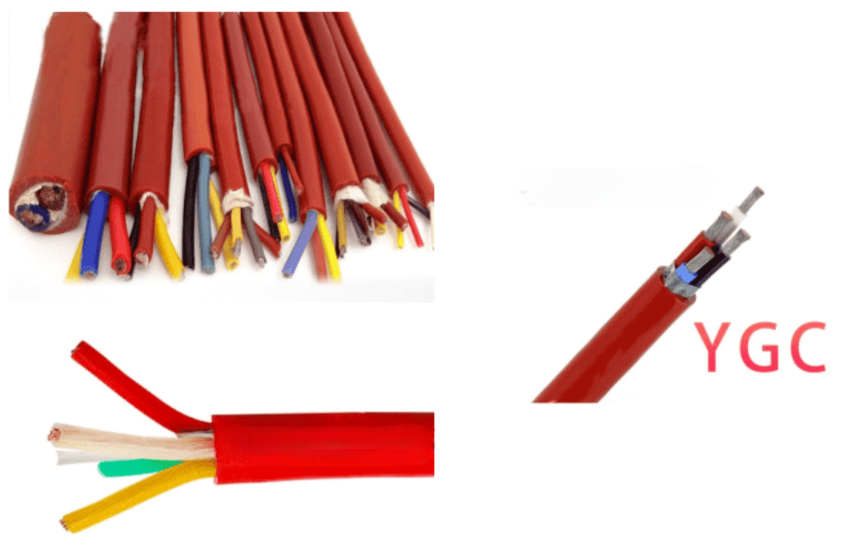

Silicone rubber low temperature resistant cable is suitable for AC rated voltage 0.6/1KV and below fixed installation power transmission lines or mobile electrical equipment connection cables. The product features resistance to heat radiation, cold resistance, resistance to acids, alkalis and corrosive gases, and water resistance. The cable structure is flexible, radiation convenient, with stable electrical performance in high temperature (extreme cold) environments. It has outstanding anti-aging performance and long service life, widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.
Characteristics:
- AC Rated Voltage: U0/U 450/750KV
- Operating Temperature: -60°C to 180°C. Fixed installation -60°C, non-fixed installation -20°C
- Cable installation temperature should not be lower than -20°C.
- Allowable Bending Radius: For non-armored cables, minimum is 6 times the cable's outer diameter
| Model | Product Name (English) |
|---|---|
| YGC | Silicone Rubber Insulated and Sheathed Power Cable |
| YGCR | Flexible Silicone Rubber Insulated and Sheathed Power Cable for Mobile Use |
| YGCP | Silicone Rubber Insulated and Sheathed Copper Braided Shielded Power Cable |
| YGC22 | Steel Tape Armored Silicone Rubber Insulated and Sheathed Power Cable |
| JGG | Silicone Rubber Insulated and Sheathed Building Wire |
| JGGR | Flexible Silicone Rubber Insulated and Sheathed Wire for Mobile Installation |
| JGGP | Silicone Rubber Insulated and Sheathed Copper Braided Shielded Building Wire |
| JHXG | Silicone Rubber Insulated Motor Lead Wire |
Production Range: Common structures: 3+1, 4+1, 3+2, 1, 2, 3, 4, 5 cores Cross-sections: 1 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm², 16 mm², 25 mm², 35 mm², 50 mm², 70 mm², 95 mm², 120 mm², 150 mm², 185 mm², 240 mm²
