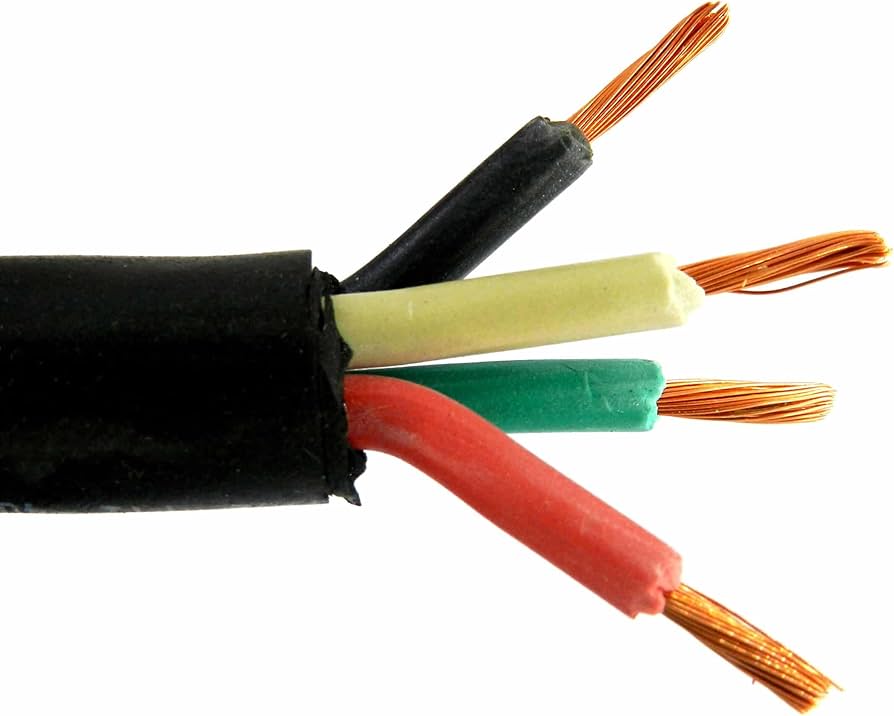

SOOW Cable – 600V Heavy-Duty Flexible Power Cord
SOOW Cable is a heavy-duty, oil-resistant, and water-resistant flexible power cable used in industrial and commercial environments where high durability is required. It is designed for 600V applications and can withstand harsh conditions such as oil exposure, moisture, abrasion, and weathering.
🔍 What Is SOOW Cable?
The term SOOW stands for:
-
S – Service (Rated for 600V)
-
OO – Oil-Resistant (Both inner insulation and outer jacket)
-
W – Water- and Weather-Resistant
SOOW cable is a portable power cable built for environments where mechanical abuse, oil, or moisture is expected.
📦 Available Sizes & Configurations
We offer a full range of SOOW cable sizes:
-
Common Sizes: 14/3, 12/3, 10/3, 8/3, 6/3, 4/4, 2/4
-
Conductors Available: 2 to 5
-
Gauge (AWG): 18 to 2 AWG
Each cable contains flexible stranded copper conductors, EPDM insulation, and a black CPE jacket.
📌 Need custom lengths or large gauge sizes like 4/0 SOOW? Contact us for details.
📈 SOOW Cable Ampacity Chart (Typical Values)
| AWG Size | Conductors | Ampacity (Approx.) |
|---|---|---|
| 14/3 | 3 | 15 Amps |
| 12/3 | 3 | 20 Amps |
| 10/3 | 3 | 30 Amps |
| 8/3 | 3 | 40 Amps |
| 6/3 | 3 | 55 Amps |
⚠️ Actual ampacity depends on installation method and environment. Always refer to NEC tables and local electrical codes.
✅ SOOW Cable vs SJOOW Cable
| Cable Type | Voltage | Jacket Thickness | Flexibility | Common Use |
|---|---|---|---|---|
| SOOW Cable | 600V | Thicker | Durable | Industrial machinery, generators |
| SJOOW Cable | 300V | Thinner | More flexible | Hand tools, indoor equipment |
🔌 Applications of SOOW Cable
-
Construction equipment
-
Portable power tools and lighting
-
Motors, compressors, and pumps
-
Marine & shipyard environments
-
Temporary power supply
-
Mining and manufacturing sites
It’s perfect for flexible, high-wear applications, especially in harsh outdoor or oily environments.
🛠️ SOOW Cable Accessories
We also supply:
-
SOOW cable connectors
-
Strain reliefs and grips
-
Custom assemblies & terminated cables
📦 Bulk & Custom SOOW Cable Available
TOT Wire & Cable provides bulk SOOW cable in reels or cut-to-length options. Fast delivery and factory pricing available.
📞 Request a Quote Today
Need help choosing the right SOOW cable size or type?
