2 Core Armoured Cable Copper Cu/XLPE/PVC/SWA/PVC BS5467 0.6/1kV

This 2-core armoured cable with copper conductors (Cu), conforming to BS5467 standards, features XLPE insulation, PVC inner and outer sheaths, and steel wire armour (SWA). Rated at 0.6/1kV, it is designed for safe and reliable power transmission in demanding environments, providing excellent electrical performance and mechanical protection for industrial and infrastructure applications.

  1. Home
  2. Steel Wire Armored Cable
  3. 2 Core SWA Armoured Cable
  4. 2 Core Armoured Cable Copper Cu/XLPE/PVC/SWA/PVC BS5467 0.6/1kV
  • slide

2 Core Armoured Cable Copper Cu/XLPE/PVC/SWA/PVC BS5467 0.6/1kV

2 Core Armoured Cable Copper Cu/XLPE/PVC/SWA/PVC BS5467 0.6/1kV

  • Rated Voltage 600/1000 Volts
  • Conductor Material soft annealed copper
  • Insulation Cross Linked Poly Ethylene (XLPE)
  • Armour Steel Wire Armoured
  • Oversheath PVC

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

2 Core SWA Armoured Cable Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

2 Core SWA Armoured Cable Standard

BS 5467 IEC 60502-1.

CONSTRUCTION :

Conductor Plain cicrcular, compacted or shaped stranded copper or aluminum conductor, conform to IEC 60228 class 2
Insulation XLPE (cross-linked polyethylene), rated at 90°C
Bedding PVC (Polyvinyl Chloride)
Armour SWA (Galvanized Steel Wire Armour)
Sheath PVC (Polyvinyl Chloride)
Rated Voltage 600/1000V

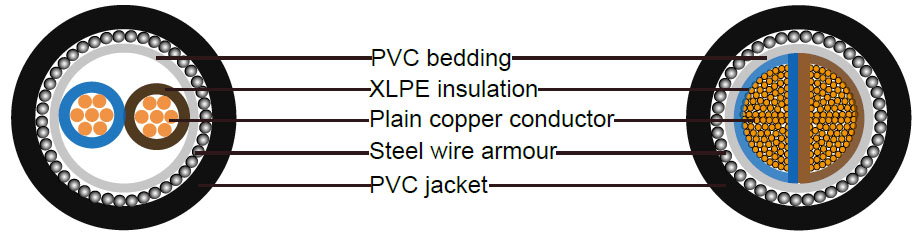

2 Core Armoured Cable Copper Construction

2 Core Armoured Cable Copper Construction

TECHNICAL DATA :
2 Core SWA Armoured Cable Technical Data

STANDARD IEC 60502-1, BS 5467 and BS 6346
APPLICATION Distribution networks, Industrial use
CHEMICAL PERFORMANCE Chemical & Oil resistance: Good
MECHANICAL PERFORMANCE Minimum bending raduis: x15cable diameter (unarmoured)
Minimum bending raduis: x20 cable diameter (armoured)
FIRE PERFORMANCE Flame non-propagation base on IEC 60332-1
Reduced emission of Halogens chlorine<15%
TERMINAL PERFORMANCE Maximum service temperature: 90°C
Maximum short-circuit temperature: 150°C(max. 5s)
Minimum service temperature: -40°C
2 Core SWA Armoured Cable Parameter
0.6/1kV-2 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor（20℃） Current carrying capacity
mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
2X2.5 0.7 0.8 1.8 14.8 364 7.41 23 32
2X4 0.7 0.8 1.8 15.7 425 4.61 30 41
2X6 0.7 1.25 1.8 17.6 646 3.08 39 53
2X10 0.7 1.25 1.8 20.1 802 1.83 53 70
2X16 0.7 1.25 1.8 22.3 1008 1.15 68 91
2X25 0.9 1.6 1.8 26.3 1470 0.727 91 116
2X35 0.9 1.6 1.8 27.6 1712 0.524 112 140
2X50 1 1.6 1.9 30.8 2123 0.387 137 168
2X70 1.1 2 2 35.4 2974 0.268 172 203
2X95 1.1 2 2.1 39.5 3737 0.193 214 249
2X120 1.2 2 2.3 42.9 4453 0.153 249 284
2X150 1.4 2.5 2.4 48 5744 0.124 284 315
2X185 1.6 2.5 2.6 52.7 6811 0.0991 326 357
