35mm 2 Core SWA Armoured Cable Application
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.
35mm 2 Core SWA Armoured Cable Standard
BS 5467 IEC 60502-1.
CONSTRUCTION :

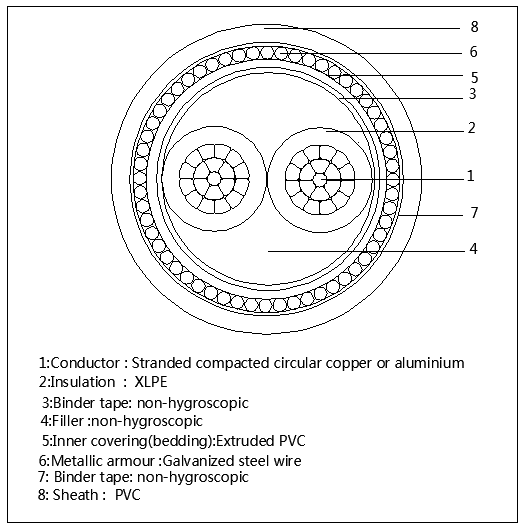

2 Core Steel Wire Armoured SWA Cable Construction
Conductors: Plain circular, compacted or shaped stranded copper or aluminium conductor (Conductor shaped: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded)
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Color identification
1 Core : Red or Black, 2 Cores : Red, Black, 3 Cores: Red, Yellow, Blue , 4 Cores: Red, Yellow, Blue, Black, 5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
*The above identifying can be changed as user requirement
Assembly /Inner Sheath：Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour： Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Sheath：Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.
Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply With the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, we can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.
TECHNICAL DATA :
2 Core SWA Armoured Cable Technical Data
35mm 2 Core Steel Wire Armoured SWA Cable Technical Data
Voltage: 600/1000v
Operating temperature: Maximum 90°C, minimum bending 0°C
Maximum short-circuit temperature: 250°C(max. 5s)
Minimum bending raduis: x20 cable diameter (armoured)
