4 Core Armoured Cable Copper Cu/XLPE/PVC/SWA/PVC BS5467 0.6/1kV

This 4-core armoured cable with Cu/XLPE/PVC/SWA/PVC construction is designed for low-voltage power distribution, rated at 0.6/1kV. It features copper conductors insulated with cross-linked polyethylene (XLPE), wrapped in PVC for added protection, and encased in steel wire armour (SWA) for mechanical durability. Suitable for outdoor and underground installations, this cable provides reliable and safe power transmission in demanding environments, complying with BS5467 standards.

  1. Home
  2. Steel Wire Armored Cable
  3. 4 Core SWA Armoured Cable
  4. 4 Core Armoured Cable Copper Cu/XLPE/PVC/SWA/PVC BS5467 0.6/1kV
  • slide

4 Core Armoured Cable Copper Cu/XLPE/PVC/SWA/PVC BS5467 0.6/1kV

4 Core Armoured Cable Copper XLPE PVC SWA 0.6/1kV

  • Rated Voltage 600/1000 Volts
  • Conductor Material soft annealed copper
  • Insulation Cross Linked Poly Ethylene (XLPE)
  • Armour Steel Wire Armoured
  • Oversheath PVC
  • Number of cores 4 core

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

4 Core Steel Wire Armoured SWA Cable Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

4 Core Steel Wire Armoured SWA Cable Standard

BS 5467 IEC 60502-1.

CONSTRUCTION :

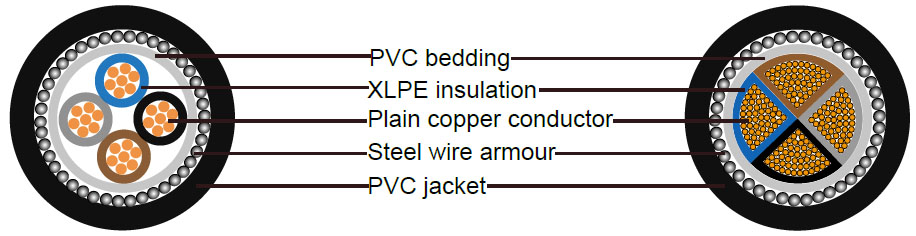

4 Core SWA Armoured Cable Construction

4 Core SWA Armoured Cable Construction

4 Core SWA Armoured Cable Construction

TECHNICAL DATA :
4 Core SWA Armoured Cable Technical Data

STANDARD IEC 60502-1, BS 5467 and BS 6346
APPLICATION Distribution networks, Industrial use
CHEMICAL PERFORMANCE Chemical & Oil resistance: Good
MECHANICAL PERFORMANCE Minimum bending raduis: x15cable diameter (unarmoured)
Minimum bending raduis: x20 cable diameter (armoured)
FIRE PERFORMANCE Flame non-propagation base on IEC 60332-1
Reduced emission of Halogens chlorine<15%
TERMINAL PERFORMANCE Maximum service temperature: 90°C
Maximum short-circuit temperature: 150°C(max. 5s)
Minimum service temperature: -40°C
4 Core SWA Armoured Cable XLPE Insulated Parameter
Type Specification Outer diameter Nominal
thickness
of insulation		 Diameter of
steel wire		 Nominal
sheath
thickness		 Approx.
Outer
diameter
of cable		 Approx. Weight
of cable		 Ampacity of cable
Air Soil
CU AL Cu Al Cu Al
XLPE/SWA mm2 mm mm mm mm mm kg/km kg/km A A A A
4×4 RE 2.24 0.7 1.25 1.8 19.1 770 670 37 28 46 35
4×6 RE 2.76 0.7 1.25 1.8 20.3 916 772 47 37 56 46
4×10 CC 3.8 0.7 1.6 1.8 22.3 1148 895 64 47 76 56
4×16 CC 4.8 0.7 1.6 1.8 24.5 1472 1070 84 64 98 76
4×25 CC 6.0 0.9 1.6 1.8 27.5 1942 1317 115 84 126 98
4×35 CC 7.0 0.9 1.6 1.8 29.5 2386 1521 141 115 152 126
4×50 SM 8.0 1.0 2.0 1.9 32.9 3209 2036 172 141 181 152
4×70 SM 9.5 1.1 2.0 2.1 36.7 4197 2502 218 172 222 181
4×95 SM 11.0 1.1 2.0 2.3 40.5 5362 3016 269 218 267 222
4×120 SM 12.4 1.2 2.5 2.4 45.3 6908 3940 313 269 305 267
4×150 SM 13.8 1.4 2.5 2.6 50.0 8327 4683 359 313 344 305
4×185 SM 15.4 1.6 2.5 2.7 54.2 10044 5466 405 359 383 344
4×240 SM 17.5 1.7 2.5 2.9 60.4 12672 6666 451 405 442 383
4×300 SM 19.6 1.8 2.5 3.1 65.7 15302 7795 497 451 461 422
