N2XRY Cable

The N2XRY cable features a copper conductor and complies with IEC 60502-1 standards. It is equipped with XLPE insulation and steel wire armouring (SWA), with a PVC outer sheath. Rated for 0.6/1kV, this cable is suitable for outdoor and industrial power distribution applications, offering excellent electrical performance and mechanical protection.

  1. Home
  2. Steel Wire Armored Cable
  3. SWA Armoured Cable Specifications
  4. N2XRY Cable
  • slide

N2XRY Cable

Copper Conductor IEC 60502-1 XLPE SWA PVC 0.6/1kV Cable

  • Rated Voltage 600/1000 Volts
  • Conductor Material soft annealed copper
  • Insulation Cross Linked Poly Ethylene (XLPE)
  • Armour Steel Wire Armoured
  • Oversheath PVC

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

N2XRY Cable Application

N2XRY cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV, which can be used in fixed industrial power applications, underground tunnels, etc. Using steel wire armour offers great mechanical protection, making it rigid with a large radius.

SPECIFICATIONS :
N2XRY Cable Specifications

ELECTRICAL PERFORMANCE Cables manufactured to BS 5467 and BS 6346 are rated for 0.6/1kV, 1.9/3.3kV
STANDARD IEC 60502-1, BS 5467 and BS 6346
APPLICATION Distribution networks, Industrial use
CHEMICAL PERFORMANCE Chemical & Oil resistance: Good
MECHANICAL PERFORMANCE Minimum bending raduis: x10 cable diameter (unarmoured)
Minimum bending raduis: x20 cable diameter (unarmoured)
FIRE PERFORMANCE Flame non-propagation base on IEC 60332-1
Reduced emission of Halogens chlorine<15%
TERMINAL PERFORMANCE Maximum service temperature: 90°C
Maximum short-circuit temperature: 160°C(max. 5s)
Minimum service temperature: -40°C

CONSTRUCTION :
N2XRY Cable Construction

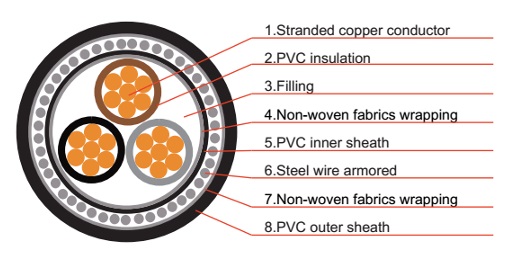

3 core N2XRY Cable Construction

3 core N2XRY Cable Construction

Conductors: soft annealed copper and can be either stranded circular or shaped.
Insulation: Cross Linked Poly Ethylene (XLPE) or Polyvinyl Chloride (PVC).
Bedding:PVC
Armour: single layer of steel wire
Oversheath: single layer of extruded PVC and is usually black in color.

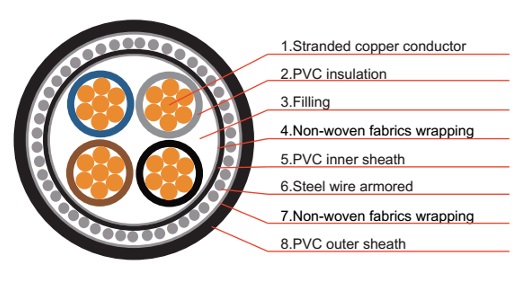

4 core N2XRY Cable Construction

4 core N2XRY Cable Construction

0.6/1kV-2 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable

0.6/1kV-2 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable

Nominal cross sectional area

Insulation thickness

Steel Wire diameter

Sheath thickness

Approximate outer diameter

Approx.
weight

Max.D.C resistance of conductor（20℃）

Current carrying capacity

mm2

mm

mm

mm

mm

kg/km

Ω/km

In Air(A)

In Ground(A)

2X2.5

0.7

0.8

1.8

14.8

364

7.41

23

32

2X4

0.7

0.8

1.8

15.7

425

4.61

30

41

2X6

0.7

1.25

1.8

17.6

646

3.08

39

53

2X10

0.7

1.25

1.8

20.1

802

1.83

53

70

2X16

0.7

1.25

1.8

22.3

1008

1.15

68

91

2X25

0.9

1.6

1.8

26.3

1470

0.727

91

116

2X35

0.9

1.6

1.8

27.6

1712

0.524

112

140

2X50

1

1.6

1.9

30.8

2123

0.387

137

168

2X70

1.1

2

2

35.4

2974

0.268

172

203

2X95

1.1

2

2.1

39.5

3737

0.193

214

249

2X120

1.2

2

2.3

42.9

4453

0.153

249

284

2X150

1.4

2.5

2.4

48

5744

0.124

284

315

2X185

1.6

2.5

2.6

52.7

6811

0.0991

326

357
0.6/1kV-3 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
0.6/1kV-3 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor（20℃） Current carrying capacity
mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
3X2.5 0.7 0.8 1.8 15.3 405 7.41 20 27
3X4 0.7 0.8 1.8 16.2 481 4.61 26 36
3X6 0.7 1.25 1.8 18.3 696 3.08 33 45
3X10 0.7 1.25 1.8 20.9 930 1.83 46 60
3X16 0.7 1.25 1.8 23.3 1191 1.15 59 77
3X25 0.9 1.6 1.8 27.6 1745 0.727 77 98
3X35 0.9 1.6 1.8 29 2100 0.524 95 119
3X50 1 1.6 1.9 32.5 2628 0.387 119 144
3X70 1.1 2 2.1 37.9 3728 0.268 151 175
3X95 1.1 2 2.2 41.8 4692 0.193 186 210
3X120 1.2 2 2.3 45.5 5645 0.153 217 242
3X150 1.4 2.5 2.5 51.3 7350 0.124 245 270
3X185 1.6 2.5 2.7 55.9 8698 0.0991 284 305
3X240 1.7 2.5 2.9 62.1 10837 0.0754 336 350
3X300 1.8 2.5 3 67.4 12990 0.0601 389 396

0.6/1kV-4 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
0.6/1kV-4 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor（20℃） Current carrying capacity
mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
4X2.5 0.7 0.8 1.8 16.1 472 7.41 20 27
4X4 0.7 1.25 1.8 18.1 677 4.61 26 36
4X6 0.7 1.25 1.8 19.3 804 3.08 33 45
4X10 0.7 1.25 1.8 22.3 1088 1.83 46 60
4X16 0.7 1.6 1.8 25.7 1571 1.15 59 77
4X25 0.9 1.6 1.8 29.7 2085 0.727 77 98
4X35 0.9 1.6 1.9 31.4 2543 0.524 95 119
4X50 1 1.6 2 35.3 3214 0.387 119 144
4X70 1.1 2 2.2 41.2 4571 0.268 151 175
4X95 1.1 2 2.3 45.6 5782 0.193 186 210
4X120 1.2 2.5 2.5 51.2 7557 0.153 217 242
4X150 1.4 2.5 2.7 56.1 9080 0.124 245 270
4X185 1.6 2.5 2.8 61.3 10822 0.0991 284 305
4X240 1.7 2.5 3.1 68.1 13566 0.0754 336 350
4X300 1.8 2.5 3.2 74.1 16356 0.0601 389 396

0.6/1kV-5 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
0.6/1kV-5 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor（20℃） Current carrying capacity
mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
5X2.5 0.7 1.25 1.8 17.9 645 7.41 20 27
5X4 0.7 1.25 1.8 19.1 770 4.61 26 36
5X6 0.7 1.25 1.8 20.5 925 3.08 33 45
5X10 0.7 1.6 1.8 24.6 1417 1.83 46 60
5X16 0.7 1.6 1.8 27.6 1812 1.15 59 77
5X25 0.9 1.6 1.9 32.2 2460 0.727 77 98
5X35 0.9 1.6 2 34.1 3019 0.524 95 119
5X50 1 2 2.2 39.7 4166 0.387 119 144
5X70 1.1 2 2.3 44.9 5443 0.268 151 175
5X95 1.1 2.5 2.5 51.3 7485 0.193 186 210
5X120 1.2 2.5 2.7 55.9 9026 0.153 217 242
5X150 1.4 2.5 2.8 61.4 10912 0.124 245 270
5X185 1.6 2.5 3 67.6 13119 0.0991 284 305
5X240 1.7 2.5 3.3 74.8 16427 0.0754 336 350
5X300 1.8 3.15 3.5 83.2 20915 0.0601 389 396

0.6/1kV-3+1 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
0.6/1kV-3+1 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor（20℃） Current carrying capacity
mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
3X4+1X2.5 0.7/0.7 1.25 1.8 17.8 873 4.61/7.41 26 36
3X6+1X4 0.7/0.7 1.25 1.8 19.1 764 3.08/4.61 33 45
3X10+1X6 0.7/0.7 1.25 1.8 21.6 1002 1.83/3.08 46 60
3X16+1X10 0.7/0.7 1.6 1.8 25.1 1475 1.15/1.83 59 77
3X25+1X16 0.9/0.7 1.6 1.8 28.7 2101 0.727/1.15 77 98
3X35+1X16 0.9/0.7 1.6 1.8 30 2300 0.524/1.15 95 119
3X50+1X25 1/0.9 1.6 2 34.1 2945 0.387/0.727 119 144
3X70+1X35 1.1/0.9 2 2.1 39.2 4131 0.268/0.524 151 175
3X95+1X50 1.1/1.0 2 2.3 43.2 5199 0.193/0.387 186 210
3X120+1X70 1.2/1.1 2.5 2.4 48.8 6827 0.153/0.268 217 242
3X150+1X70 1.4/1.1 2.5 2.6 52.9 7915 0.124/0.268 245 270
3X185+1X95 1.6/1.1 2.5 2.7 57.8 9655 0.0991/0.193 284 305
3X240+1X120 1.7/1.2 2.5 2.9 64.1 11988 0.0754/0.153 336 350
3X300+1X150 1.8/1.4 2.5 3.1 69.8 14475 0.0601/0.124 389 396

0.6/1kV-4+1 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
0.6/1kV-4+1 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor（20℃） Current carrying capacity
mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
4X4+1X2.5 0.7/0.7 1.25 1.8 18.9 731 4.61/7.41 26 36
4X6+1X4 0.7/0.7 1.25 1.8 20.3 875 3.08/4.61 33 45
4X10+1X6 0.7/0.7 1.6 1.8 23.9 1295 1.83/3.08 46 60
4X16+1X10 0.7/0.7 1.6 1.8 27 1712 1.15/1.83 59 77
4X25+1X16 0.9/0.7 1.6 1.9 31.2 2322 0.727/1.15 77 98
4X35+1X16 0.9/0.7 1.6 1.9 32.8 2759 0.524/1.15 95 119
4X50+1X25 1/0.9 2 2.1 38.5 3860 0.387/0.727 119 144
4X70+1X35 1.1/0.9 2 2.3 43 5010 0.268/0.524 151 175
4X95+1X50 1.1/1.0 2.5 2.4 48.9 6850 0.193/0.387 186 210
4X120+1X70 1.2/1.1 2.5 2.6 54 8395 0.153/0.268 217 242
4X150+1X70 1.4/1.1 2.5 2.7 58.4 9745 0.124/0.268 245 270
4X185+1X95 1.6/1.1 2.5 2.9 64.4 11948 0.0991/0.193 284 305
4X240+1X120 1.7/1.2 2.5 3.1 71.1 14832 0.0754/0.153 336 350
4X300+1X150 1.8/1.4 3.15 3.4 78.9 18826 0.0601/0.124 389 396

0.6/1kV-3+2 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
0.6/1kV-3+2 core copper conductor XLPE insulated steel wire armored PVC sheathed power cable
Nominal cross sectional area Insulation thickness Steel Wire diameter Sheath thickness Approximate outer diameter Approx.
weight		 Max.D.C resistance of conductor（20℃） Current carrying capacity
mm2 mm mm mm mm kg/km Ω/km In Air(A) In Ground(A)
3X4+2X2.5 0.7/0.7 1.25 1.8 18.6 705 4.61/7.41 26 36
3X6+2X4 0.7/0.7 1.25 1.8 20 845 3.08/4.61 33 45
3X10+2X6 0.7/0.7 1.25 1.8 22.5 1109 1.83/3.08 46 60
3X16+2X10 0.7/0.7 1.6 1.8 26.5 1630 1.15/1.83 59 77
3X25+2X16 0.9/0.7 1.6 1.8 30.2 2185 0.727/1.15 77 98
3X35+2X16 0.9/0.7 1.6 1.9 31.3 2505 0.524/1.15 95 119
3X50+2X25 1/0.9 2 2.1 37 3531 0.387/0.727 119 144
3X70+2X35 1.1/0.9 2 2.2 41.1 4572 0.268/0.524 151 175
3X95+2X50 1.1/1.0 2 2.4 45.8 5841 0.193/0.387 186 210
3X120+2X70 1.2/1.1 2.5 2.6 52.1 7765 0.153/0.268 217 242
3X150+2X70 1.4/1.1 2.5 2.7 55.4 8758 0.124/0.268 245 270
3X185+2X95 1.6/1.1 2.5 2.8 60.8 10777 0.0991/0.193 284 305
3X240+2X120 1.7/1.2 2.5 3 67.4 13385 0.0754/0.153 336 350
3X300+2X150 1.8/1.4 2.5 3.2 73.6 16100 0.0601/0.124 389 396
