TOT Wire & Cable supplies high-quality TPS (Thermoplastic Sheathed) Cables designed in accordance with AS/NZS 5000.2 standards, ideal for residential and commercial wiring in Australia and New Zealand. Our TPS cables are constructed with flat PVC sheathing, PVC insulation, and stranded copper conductors. They are manufactured for durability, flexibility, and long-term electrical safety.
tps cable

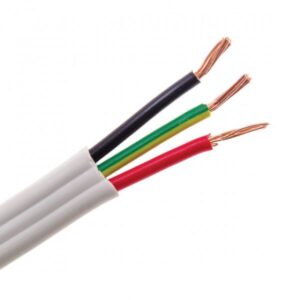

What is TPS Cable?
TPS stands for Thermoplastic Sheathed Cable, commonly used for fixed wiring in homes, offices, and light industrial buildings in Australia and New Zealand. It features:
- A flat configuration with two or three insulated cores and an optional earth (ground) wire
- PVC insulation and a white or black outer sheath
- Rated for 450/750V applications
Key Features of TPS Cables
- Standard: AS/NZS 5000.2
- Voltage Rating: 450/750V
- Conductor Material: Plain annealed stranded copper
- Insulation: PVC (Polyvinyl Chloride)
- Sheath: UV-resistant PVC outer jacket
- Configuration Options:
- 1 core (SDI)
- 2 core
- 2 core + Earth
- 3 core
- 3 core + Earth
- Sizes Available: 1.0mm² to 16mm²
- Color Coding: Red, black, and green/yellow for easy identification
- Operating Temperature: Up to 75°C
Common Applications
- General power and lighting circuits
- Indoor fixed wiring
- Cable installation in walls, ceilings, and conduits
- Suitable for both exposed and concealed wiring
Why Choose TOT's TPS Cable?
- Full compliance with AS/NZS 5000.2 standards
- Export-ready with optional SAA certification
- Factory-direct pricing with fast delivery
- Available in bulk reels or cut lengths as required
- Consistent quality control for smooth installation and long-term reliability
Popular TPS Cable Models
- TPS Cable 1.5mm 2 Core + Earth
- TPS Cable 2.5mm 2 Core + Earth
- TPS Cable 4mm 3 Core + Earth
- TPS Cable 6mm 3 Core
Custom configurations available upon request.
Related Searches (SEO targets)
- TPS Cable 2.5mm Australia
- Flat TPS Cable 3 Core + Earth
- AS/NZS 5000.2 Cable
- What is TPS cable
- TPS cable vs PVC cable
Looking for the best TPS cable supplier from China to Australia? Contact us for a quote or technical datasheet today.
