4/0 2C Type W Portable Power Cable

The 4/0 2C Type W Portable Power Cable is a heavy-duty, flexible power cable designed for high-demand applications. With a 4/0 AWG conductor size and 2 conductors, this cable is ideal for use in industrial power distribution, mining, and temporary power supply systems. Rated for 2000V, it provides reliable, long-lasting performance even in challenging environments.

4/0 2C Type W Portable Power Cable

Key Specifications

Conductor Size 4/0 AWG
Rated Voltage 2000V
Number of Conductors 2 Conductors
Conductors Stranded annealed tinned copper conductor.
Insulation EPR
Sheath Chlorinated Polyethylene(CPE), black. Other sheath materials/color can be offered as an option
Standards ICEAS-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96

Construction

Construction of 2 Conductor 2000V Type W Portable Power Cable

1.Stranded Tinned Copper Conductor 2.EPR Insulation 3.Reinforcement CPE Sheath

Options

Other jacket materials/color such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fiber between the two layers can be offered as an option.

Mechanical and Thermal Properties

● Minimum Bending Radius: 6×OD

● Maximum Operating Temperature: +90C

Conatact us

The 4/0 2C Type W Portable Power Cable is a heavy-duty, flexible power cable designed for high-demand applications. With a 4/0 AWG conductor size and 2 conductors, this cable is ideal for use in industrial power distribution, mining, and temporary power supply systems. Rated for 2000V, it provides reliable, long-lasting performance even in challenging environments.

This cable features stranded copper conductors, EPDM insulation, and a CPE jacket, making it suitable for both indoor and outdoor use. Its rugged construction ensures it can withstand extreme temperatures, mechanical wear, and exposure to oil, water, and UV rays.

Dimensions and Weight

No. of Cores × AWG/kcmil	No. of Strands	Nominal Insulation Thickness		Nominal Overall Diameter		Nominal Weight		Ampacity (A)
No. of Cores × AWG/kcmil	No. of Strands	inch	mm	inch	mm	lbs/kft	kg/km	Ampacity (A)
2×8 166	166	0.060	1.5	0.83	21.1	391	581	72
2×6 259	259	0.060	1.5	0.94	23.9	571	849	95
2×4 412	412	0.060	1.5	1.07	27.3	793	1180	127
2×2 259	259	0.060	1.5	1.26	32.1	1142	1699	167
2×1/0 414	414	0.080	2.0	1.51	38.3	1693	2520	217
2×2/0 522	522	0.080	2.0	1.65	41.9	1908	2840	250
2×3/0 658	658	0.080	2.0	1.77	45.0	2600	3870	286
2×4/0 829	829	0.080	2.0	1.92	48.8	2675	3980	328
2×250 973	973	0.095	2.4	2.10	53.3	3434	5110	363

Ampacity-Based on a conductor temperature of 90C and an ambient air temperature of 40C, per ICEA S-75-381.

Applications

Portable Power Distribution
Generators and Temporary Power Supply Systems
Mining and Tunneling Operations
Industrial Equipment Power
Construction Sites and Shipyards
Outdoor Power Systems and Electrical Rigs

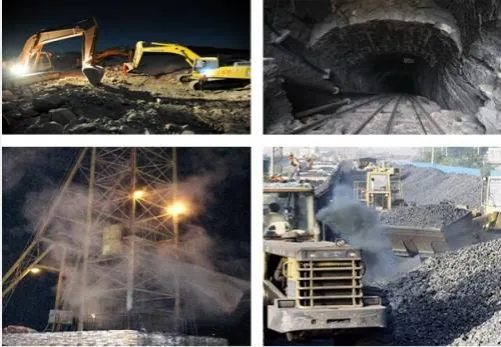

4/0 2C Type W Portable Power Cable application
