3 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV

This is a 3-core copper cable with XLPE insulation and PVC sheathing, rated at 0.6/1kV. It is suitable for various electrical power distribution applications, providing reliable performance with high current capacity. The XLPE insulation offers excellent thermal and electrical properties, while the PVC sheath provides environmental protection. This cable is unarmoured, making it suitable for indoor or protected outdoor installations where additional armouring isn't required.

  1. Home
  2. XLPE Insulated Cables
  3. XLPE Insulated 3 Core Copper Cable
  4. 3 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV
  • slide

3 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV

3 Cores XLPE Insulated, PVC Sheathed Unarmoured Copper Cable, 0.6/1kV

  • Rated Voltage 600/1000 Volts
  • Conductor Material Plain annealed copper
  • Insulation XLPE X-90
  • Sheath Polyvinylchloride compound PVC 5V-90
  • Number of cores 3 Core
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

XLPE 3 Core Copper Cable Application

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

XLPE 3 Core Copper Cable Standard

AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125
IEC60502-1

CONSTRUCTION :

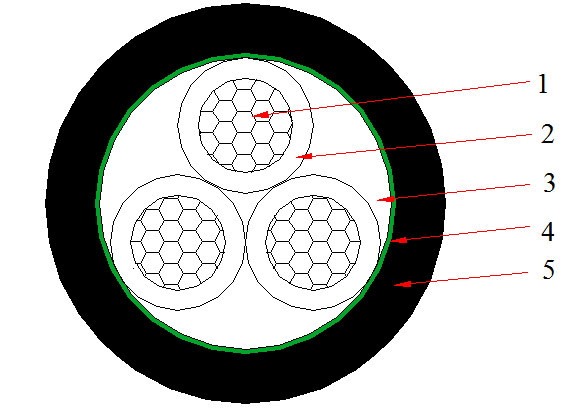

XLPE 3 Core Copper Cable Construction
1. Conductor: Copper , Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

XLPE 3 Core Copper Cable Construction

XLPE 3 Core Copper Cable Construction

PARAMETER :

XLPE 3 Core Copper Cable Parameter
0.6/1kV-3 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation  Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
3X1.5 0.7 1.8 11.8 135 12.1 21 30
3X2.5 0.7 1.8 12.7 180 7.41 28 39
3X4 0.7 1.8 13.8 225 4.61 37 51
3X6 0.7 1.8 14.9 300 3.08 47 64
3X10 0.7 1.8 17.2 430 1.83 65 86
3X16 0.7 1.8 19.4 630 1.15 84 110
3X25 0.9 1.8 22.8 940 0.727 110 140
3X35 0.9 1.8 24.3 1250 0.524 135 170
3X50 1.0 1.8 25.0 1500 0.387 170 205
3X70 1.1 1.9 29.4 2140 0.268 215 250
3X95 1.1 2.0 33.6 2960 0.193 265 300
3X120 1.2 2.1 35.9 3760 0.153 310 345
3X150 1.4 2.3 39.9 4420 0.124 350 385
3X185 1.6 2.4 44.1 5950 0.0991 405 435
3X240 1.7 2.6 51.1 7100 0.0754 480 500
3X300 1.8 2.7 56.1 9000 0.0601 555 565
3X400 2.0 3.0 62.4 10000 0.0470 640 640
