0.6/1kV 3+2 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable

Low Voltage 0.6/1kV 3+2 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable

  • Rated Voltage 600/1000 Volts
  • Conductor Material Copper
  • Number of cores 3+2
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

XLPE 3+2 Cores Copper Cable Application

The structure of 3 cores+2 earth is designed for application where the earth wires are required according to customer requirements. These cables are often referred 3 cores +2 cables XLPE insulated with voltage 600/1000v or IEC60502 3 cores +2 cables.

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

XLPE 3+2 Cores Copper Cable Standard

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 35kV(Um=40.5kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

CONSTRUCTION :

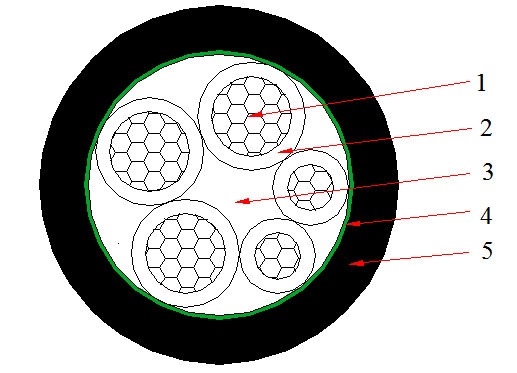

XLPE 3+2 Cores Cable Construction
1. Conductor: Plain annealed copper, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

XLPE 3+2 Cores Cable Construction

XLPE 3+2 Cores Cable Construction

PARAMETER :

XLPE 3+2 Cores Copper Cable Parameter
0.6/1kV-3+2 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation  Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor（20℃） Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
3X2.5+2X1.5 0.7/0.7 1.8 13.0 200 7.41/12.1 28 39
3X4+2X2.5 0.7/0.7 1.8 14.3 260 4.61/7.41 37 51
3X6+2X4 0.7/0.7 1.8 15.6 350 3.08/4.61 47 64
3X10+2X6 0.7/0.7 1.8 17.9 480 1.83/3.08 65 86
3X16+2X10 0.7/0.7 1.8 20.8 760 1.15/1.83 84 110
3X25+2X16 0.9/0.7 1.8 25.2 1040 0.727/1.15 110 140
3X35+2X16 0.9/0.7 1.8 26.8 1420 0.524/1.15 135 170
3X50+2X25 1.0/0.9 1.9 28.7 1830 0.387/0.727 170 205
3X70+2X35 1.1/0.9 2.0 32.2 2500 0.268/0.524 215 250
3X95+2X50 1.1/1.0 2.2 36.7 3400 0.193/0.387 265 300
3X120+2X70 1.2/1.1 2.3 40.8 4300 0.153/0.268 310 345
3X150+2X70 1.4/1.1 2.4 44.5 5200 0.124/0.268 350 385
3X185+2X95 1.6/1.1 2.6 50.5 6500 0.0991/0.193 405 435
3X240+2X120 1.7/1.2 2.8 56.1 8500 0.0754/0.153 480 500
3X300+2X150 1.8/1.4 3.0 63.7 10000 0.0601/0.124 555 565
