XLPE Insulated Single Core 10mm2 Copper Cable 1x10mm2

The XLPE Insulated, PVC Sheathed Unarmoured Single Core 10mm² Copper Cable, rated at 0.6/1kV, is a high-performance power cable designed for efficient electrical distribution. It features a single copper conductor insulated with cross-linked polyethylene (XLPE), which provides excellent thermal stability, chemical resistance, and long-term durability. The PVC sheath offers additional mechanical protection and resistance to moisture and environmental factors. With a cross-sectional area of 10mm², this cable is suitable for various industrial and commercial applications requiring reliable power transmission. Its unarmoured construction allows for flexible installation in controlled environments, making it ideal for indoor wiring and protected outdoor use.

  1. Home
  2. XLPE Insulated Cables
  3. XLPE Insulated Single Core Copper Cable
  4. XLPE Insulated Single Core 10mm2 Copper Cable 1x10mm2
  • slide

XLPE Insulated Single Core 10mm2 Copper Cable 1x10mm2

XLPE Insulated, PVC Sheathed Unarmoured Single Core 10mm2 Copper Cable, 0.6/1kV

  • Rated Voltage 600/1000 Volts
  • Cross section area 10mm2
  • Number of cores Single Core
  • Package Export wooden drum & iron wooden drum or as customer require

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

XLPE Single Core 10mm2 Copper Cable Application

Single core XLPE insulated copper cable/wire features a plain annealed solid or strands circular copper conductor with XLPE insulation and PVC sheath. It is also referred to XLPE cable or CU/XLPE/PVC Cable 0.6/1kV.

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

XLPE Single Core 10mm2 Copper Cable Standard

XLPE Single Core 10mm2 Copper Cable Standard
Design Specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-1, BS EN 60332-1

CONSTRUCTION :

XLPE Single Core 10mm2 Copper Cable Construction
Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Insulation: Cross-linked Polyethylene (XLPE) compound
Insulation colour: Natural
Outer sheath: Polyvinyl Chloride (PVC) Compound
Outer sheath colour: Black

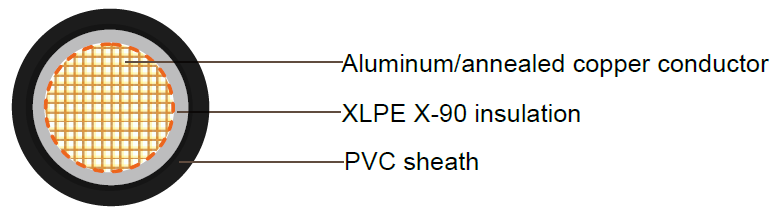

XLPE Single Core Copper Cable Construction

XLPE Single Core Copper Cable Construction

PARAMETER :

XLPE Single Core 10mm2 Copper Cable Parameter

Cable Type: CU/XLPE/PVC
Operating voltage, U0 / U (V): 600/1000
Number of cores: Single
Nominal Area (mm2): 10
Conductor Stranding: 7
Insulation Thickness (mm): 0.7
Sheath Thickness (mm): 1.4
Cable Overall Diameter (O.D.) (mm): 8.0
Cable Weight Per 1000 Meters (kg): 140
Resistance DC 20°C Per 1000 Meters (Ω): 1.83
Allowable Ampacity in Air (Amps): 71
Allowable Ampacity  in Ground (Amps): 92
Test Voltage:
 3.5kV for 5 minutes
Operating Temperature (°C) : -15 to +90
Final Short Circuit Temperature (°C):

250
