Engineered for medium-voltage power transmission, factory supply 6.5-35kv medium voltage abc cable aerial bundled cables with strandard iec as-nzs , meeting the demands of industrial and commercial applications.
6.35/11kV Screened MV ABC Cable–Aerial Bundled Cables to IEC 60502
Conductor: Compact stranded hard drawn Aluminium Conductor ( Class2)
Conductor Screen: Extruded semi-conductive layer.
Insulation : Cross-linked polyethylene (Natural)
Conductor Screen: Extruded semi-conductive layer.
Insulation : Cross-linked polyethylene (Natural)
6.35/11kV Screened MV ABC Cable–Aerial Bundled Cables to AS/NZS 3599.1 (AL/XLPE /CWS/HDPE)
Conductor: Compact stranded hard drawn Aluminium Conductor ( Class2)
Conductor Screen: Extruded semi-conductive layer.
Insulation: Cross-linked polyethylene (Natural)
Conductor Screen: Extruded semi-conductive layer.
Insulation: Cross-linked polyethylene (Natural)
12.7/22kV Screened MV ABC Cable–Aerial Bundled Cables to AS/NZS 3599.1 (AL/XLPE /CWS/HDPE)
Conductor: Compact stranded hard drawn Aluminium Conductor ( Class2)
Conductor Screen: Extruded semi-conductive layer.
Insulation : Cross-linked polyethylene (Natural)
Conductor Screen: Extruded semi-conductive layer.
Insulation : Cross-linked polyethylene (Natural)
Aerial Insulated Cable (IEC 60502-2)
Conductor: Circular compressed aluminum, aluminum-alloy, copper.
Conductor shield: Semi-conducting cross-linked polyethylene.
Insulation: Cross-linked polyethylene (Natural)
Conductor shield: Semi-conducting cross-linked polyethylene.
Insulation: Cross-linked polyethylene (Natural)
19/33kV Screened MV ABC Cable–Aerial Bundled Cables to IEC 60502
Conductor: Compact stranded hard drawn Aluminium Conductor ( Class2)
Conductor Screen: Extruded semi-conductive layer.
Insulation: Cross-linked polyethylene (Natural)
Conductor Screen: Extruded semi-conductive layer.
Insulation: Cross-linked polyethylene (Natural)
6.35/11kV & 12.7/22kV Non Screened MV ABC Cable Aerial Bundled Cables to AS/NZS 3599.1
Conductor: Compact stranded hard drawn Aluminium Conductor ( Class2)
Conductor Screen: Extruded semi-conductive layer.
Insulation: Cross-linked polyethylene (Natural)
Conductor Screen: Extruded semi-conductive layer.
Insulation: Cross-linked polyethylene (Natural)

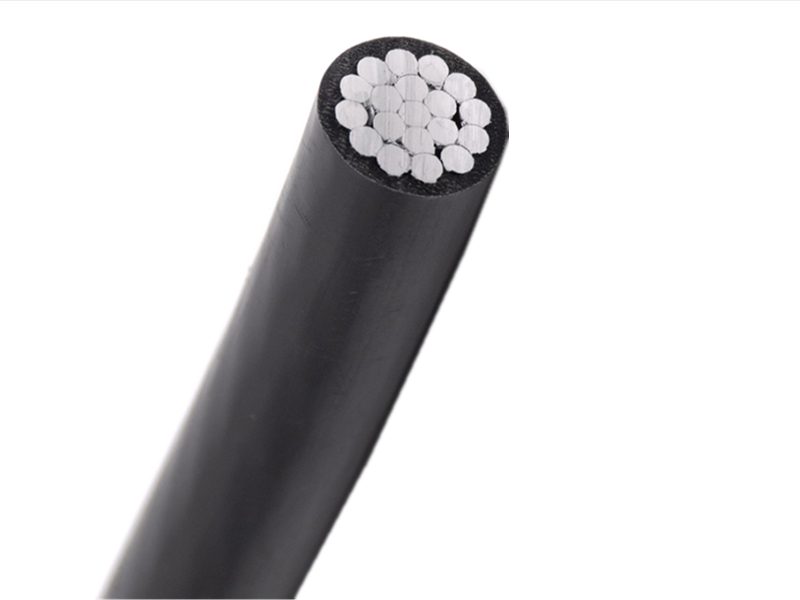

SIP-3 Cable 20kV 35KV
Name: Self-supporting Insulated Overhead Wire Cable SIP-3
Conductor : Aluminum Alloy Conductor
Insulation : XLPE
Conductor : Aluminum Alloy Conductor
Insulation : XLPE
