4/0 1C Type W Portable Power Cable

Single Conductor Type W Cable is a rugged, 2000V-rated portable power cable designed for use in harsh industrial environments. With flexible stranded copper conductors, EPDM insulation, and a durable CPE jacket, it delivers exceptional performance in mining, generators, and temporary power systems.

  1. Home
  2. Type W Cable – Heavy Duty Portable Power
  3. 4/0 1C Type W Portable Power Cable
  • slide

4/0 1C Type W Portable Power Cable

Key Specifications

  • Wire Gauge 4/0 AWG
  • Number of Conductors Single Conductor (1C)
  • Conductors Stranded annealed tinned copper conductor
  • Insulation EPR
  • Sheath Chlorinated Polyethylene(CPE), black. Other sheath materials/color can be offered as an option
  • Type Portable Power Cable (Type W)
  • Reinforcement A layer of polyester braid, applied between the insulation and sheath for mechanical strength
  • Standards ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No.96

Construction

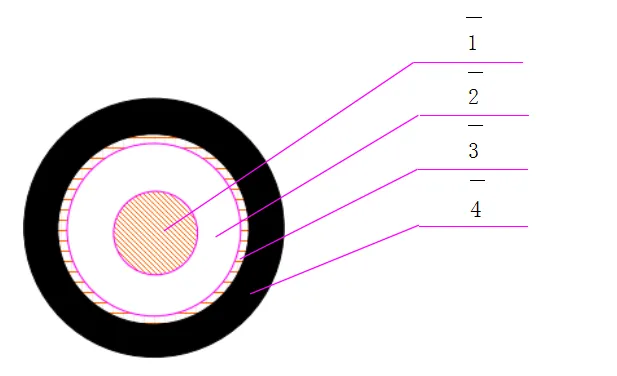

Construction of Single Conductor 2000V Type W Portable Power Cable

Construction of Single Conductor 2000V Type W Portable Power Cable

1.Stranded Tinned Copper Conductor 2.EPR Insulation 3.Reinforcement 4.CPE Jacket

Options

Other jacket materials/color such as CSP/PCP/NBR/PVC are available upon request.

Two-layer jacket with reinforcing fiber between the two layers can be offered as an option.

Mechanical and Thermal Properties

● Minimum Bending Radius: 6×OD

● Maximum Operating Temperature: +90C

Conatact us

Name

Email

Phone

Message

Congratulations. Your message has been sent successfully.
Error, please retry. Your message has not been sent.

Single Conductor Type W Cable is a rugged, 2000V-rated portable power cable designed for use in harsh industrial environments. With flexible stranded copper conductors, EPDM insulation, and a durable CPE jacket, it delivers exceptional performance in mining, generators, and temporary power systems.

Dimensions and Weight

No. of Cores × AWG/kcmil No. of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight Ampacity (A)
inch mm inch mm lbs/kft kg/km
1×8 133 133 0.060 1.5 0.44 11.2 150 223 83
1×6 168 168 0.060 1.5 0.51 13.0 205 305 109
1×4 259 259 0.060 1.5 0.57 14.5 280 417 145
1×3 329 329 0.060 1.5 0.63 16.0 350 521 167
1×2 259 259 0.060 1.5 0.66 16.8 370 550 192
1×1 329 329 0.080 2.0 0.74 18.8 500 744 223
1×1/0 259 259 0.080 2.0 0.77 19.6 550 818 258
1×2/0 329 329 0.080 2.0 0.82 20.1 660 982 298
1×3/0 427 427 0.080 2.0 0.87 22.1 830 1235 345
1×4/0 532 532 0.080 2.0 0.93 23.6 950 1413 400
1×250 608 608 0.095 2.4 1.03 26.2 1240 1845 445
1×300 741 741 0.095 2.4 1.09 27.7 1400 2083 500
1×350 855 855 0.095 2.4 1.15 29.2 1480 2202 552
1×500 1221 1221 0.095 2.4 1.31 33.3 2140 3184 695

Ampacity-Based on a conductor temperature of 90C and an ambient air temperature of 40C, per ICEA S-75-381

✅ Key Features

  • High Conductivity: The 4/0 size provides excellent conductivity for high-load requirements.

  • Strong Durability: Designed for harsh environments, resistant to abrasion and chemical damage, perfect for industrial use.

  • Convenient: Lightweight design makes movement and management easy, enhancing work efficiency.

🛠 Applications

  • Portable power distribution

  • Mining and tunneling operations

  • Generator cable connections

  • Temporary electrical setups

  • Shipyards and industrial sites

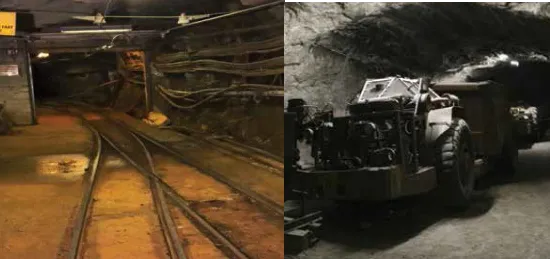

Use on Mining and tunneling operations

Use on Mining and tunneling operations
