Key Specifications
Construction of 3 Conductor 2000V Type W Portable Power Cable
1.Stranded Tinned Copper Conductor 2.EPR Insulation 3.Reinforced CPE Jacket
Options
Other jacket materials/color such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fiber between the two layers can be offered as an option.
Mechanical and Thermal Properties
● Minimum Bending Radius: 6×OD
● Maximum Operating Temperature: +90C
Conatact us
The 4/0 3C Type W Portable Power Cable, engineered for high-performance applications that require reliable power transmission. Perfect for industrial, agricultural, and construction uses, this cable is built to withstand demanding environments while offering flexibility and durability.
These cables are designed for general use where bare grounding conductors are not required or desired .
Dimensions and Weight
| No. of cores×AWG/kcmil | No. of Strands | Nominal Insulation Thickness (inch/mm) |
Nominal Overall Diameter (inch/mm) |
Nominal Weight (lbs/kft/kg/km) |
Ampacity (A) |
|---|---|---|---|---|---|
| 3×8 | 133 | 0.06/1.5 | 0.91/23.1 | 550/818 | 59 |
| 3×6 | 133 | 0.06/1.5 | 1.01/25.7 | 730/1086 | 79 |
| 3×4 | 259 | 0.06/1.5 | 1.17/29.7 | 1020/1518 | 104 |
| 3×2 | 259 | 0.06/1.5 | 1.34/34.0 | 1430/2128 | 138 |
| 3×1 | 259 | 0.08/2.0 | 1.51/38.4 | 1800/2678 | 161 |
| 3×1/0 | 266 | 0.08/2.0 | 1.65/41.9 | 2140/3184 | 186 |
| 3×2/0 | 342 | 0.08/2.0 | 1.75/44.5 | 2580/3839 | 215 |
| 3×3/0 | 418 | 0.08/2.0 | 1.89/48.0 | 2922/4347 | 249 |
| 3×4/0 | 532 | 0.08/2.0 | 2.04/51.8 | 3800/5654 | 287 |
| 3×250 | 741 | 0.095/2.4 | 2.39/60.7 | 4368/6500 | 320 |
| 3×350 | 888 | 0.095/2.4 | 2.66/67.5 | 5895/8772 | 394 |
| 3×500 | 1221 | 0.095/2.4 | 2.98/75.8 | 7820/11638 | 487 |
Key Features
Applications

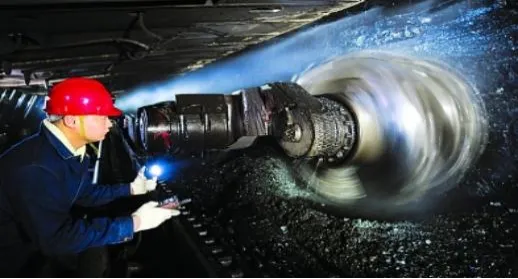

4/0 3C Type W Portable Power Cable application
