Key Specifications
Construction of Type W Five-Conductor Portable Power Cable 2kV
1.Stranded Tinned Copper Conductor 2.EPR Insulation
3.Reinforced CPE Jacket
Options
Other jacket materials/color such as
CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fiber between
the two layers can be offered as an option.
Mechanical and Thermal Properties
● Minimum Bending Radius: 6×OD
● Maximum Operating Temperature: +90C
Conatact us
The 4/0 5C Type W Portable Power Cable, designed to meet the highest standards of durability and reliability. This cable is ideal for heavy-duty industrial applications, including mining, drilling, and construction, where robust and dependable power transmission is crucial.
These cables are designed for general use with mobile mining equipment such as continuous miners, drills,cutters, loading machines and AC shuttle cars.Type W cables are for applications where bare grounding conductors are not required or desired.
Dimensions and Weight
| No. of Cores×AWG/kcmil | No. of Strands | Nominal Insulation Thickness (inch/mm) |
Nominal Overall Diameter (inch/mm) |
Nominal Weight (lbs/kft/kg/km) |
Ampacity (A) |
|---|---|---|---|---|---|
| 5×8 | 133 | 0.06/1.5 | 1.07/27.2 | 776/1154 | 50 |
| 5×6 | 133 | 0.06/1.5 | 1.24/31.5 | 1024/1524 | 68 |
| 5×4 | 259 | 0.06/1.5 | 1.36/35.2 | 1432/2131 | 88 |
| 5×2 | 259 | 0.06/1.5 | 1.56/39.8 | 2051/3052 | 116 |
| 5×1 | 259 | 0.06/1.5 | 1.85/47.1 | 2665/3967 | 136 |
| 5×1/0 | 266 | 0.08/2.0 | 1.98/50.4 | 3406/5069 | 150 |
| 5×2/0 | 342 | 0.08/2.0 | 2.13/54.1 | 3596/5351 | 172 |
| 5×3/0 | 418 | 0.08/2.0 | 2.27/57.6 | 4728/7035 | 200 |
| 5×4/0 | 532 | 0.08/2.0 | 2.46/62.6 | 5512/8203 | 230 |
Ampacity-Based on a conductor temperature of 90C and an ambient air temperature of 40C, per
ICEA S-75-381.
ApplicationsThese cables are designed for general use with mobile mining equipment such as continuous miners, drills,cutters, loading machines and AC shuttle cars.Type W cables are for applications where bare grounding conductors are not required or desired.

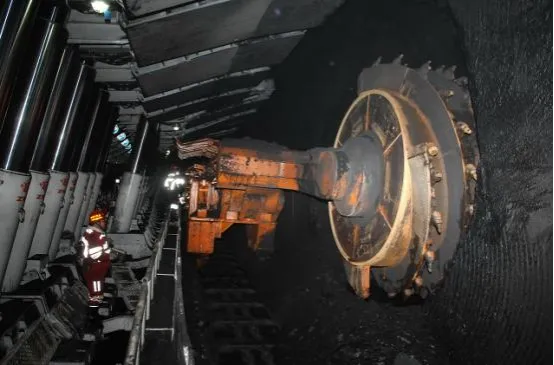

1. Mobile Mining Equipment
Ideal for powering mobile mining machinery such as continuous miners, drills, cutters, loading machines, and AC shuttle cars, ensuring reliable energy supply in tough mining conditions.
2. Temporary Power Distribution
Perfect for situations where a temporary power source is needed, such as construction sites, outdoor events, or emergency response scenarios, providing a quick and efficient power setup.
3. Industrial Machinery
Durable and robust enough to serve as a power source for heavy industrial machinery and equipment, ensuring uninterrupted operation in demanding environments.
4. Entertainment and Event Venues
Reliable power for stage lighting, sound systems, and other essential equipment at concerts, festivals, film sets, and theatrical productions.
5. Construction Sites
Essential for powering tools, machinery, and temporary lighting, supporting the continuous workflow and productivity of construction projects.
6. Infrastructure and Utility Works
Utilized in utility works for power transmission and distribution, offering a durable and safe solution for infrastructure projects.
7. Commercial and Residential Construction
Used during the construction phase of commercial and residential buildings for powering construction equipment and providing temporary lighting.
8. Agricultural and Farming Operations
Providing power to various farming equipment and machinery, supporting efficient agricultural operations.
9. Rental Services
Popular among equipment rental services for their portability and reliability, making them suitable for a wide range of customer needs.
10. Emergency and Disaster Relief
Deployed in emergency situations such as natural disasters or power outages to provide a temporary power source for essential services.
